ALUMINUM MILL MAINTENANCE MACHINES

UNIQUE GRADALL BOOM MOVEMENTS FOR EFFICIENT MAINTENANCE

Aluminum Mill Image 1
Aluminum Mill Image 2
Aluminum Mill Image 5
Aluminum Mill Image 4
Aluminum Mill Image 7
Aluminum Mill Image 6
Aluminum Mill Image 3
Aluminum Mill Thumbnail Image 1 Aluminum Mill Thumbnail Image 2 Aluminum Mill Thumbnail Image 5 Aluminum Mill Thumbnail Image 4 Aluminum Mill Thumbnail Image 7 Aluminum Mill Thumbnail Image 6 Aluminum Mill Thumbnail Image 3

Booms articulate to work inside furnaces

On crawler or rubber tire undercarriages, Gradall aluminum mill maintenance machines have articulating booms with unique movements to reach through the furnace mouth to skim dross and maintain furnace walls and bottoms. Horizontally, the boom can raise 29 inches. Boom will tilt 8.1° above grade and 19° below grade.

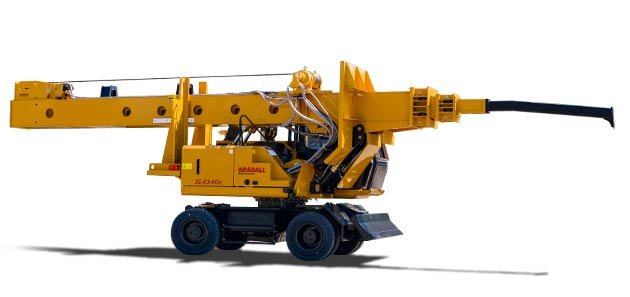

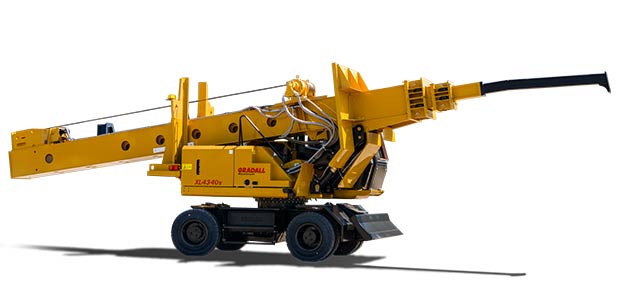

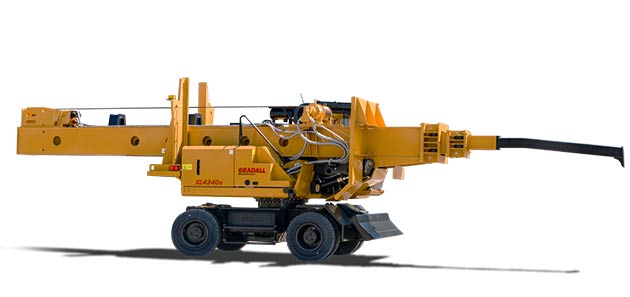

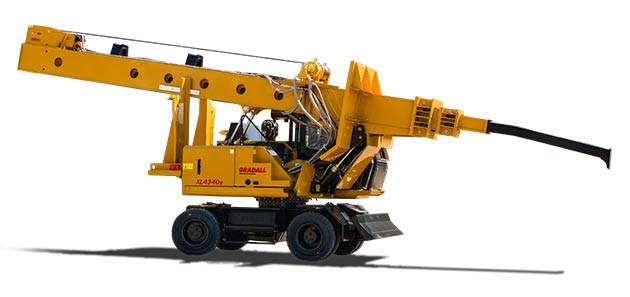

Aluminum Mill Range Image 1 Aluminum Mill Range Image 2 Aluminum Mill Range Image 3 Aluminum Mill Range Image 4

FEATURES

FEATURES

Corner Image

SPECIFICATIONS

Corner Image

LITERATURE

Corner Image
PRICING    Corner Image
  • CHASSIS DESIGN
  • CHASSIS DESIGN
  • BOOM
  • OPERATOR CAB
  • ADVANCED SYSTEMS
  • PERFORMANCE
  • Powered by a single Volvo TAD551 VE Tier 3 engine, with an optional TAD517 VE NA Tier 4f engine that meets highest global standards including Stage 4 (EU) and NA Tier 4f emissions requirements
  • Crawler or rough terrain rubber tire undercarriage
  • On crawler models, dual range high torque piston motor powers each track, along with three-stage planetary drive, integral speed limiting valve and automatic spring-set hydraulic release wet disc parking brake
  • Triple grouser crawler excavator pads available in a choice of widths enhance tracking ability, with high range travel speeds up to 3.4 mph
  • Tracks counter-rotate to pivot machine about the swing centerline
  • Single-point lifting yoke available
  • Stainless steel braided hose and fire sleeves
  • Crawler tracks and foam filled or solid rubber tires are fire resistant
  • Heat resistant shields protect rubber tires
  • Wheeled models have oscillation lock cylinders and strong box plate construction, enabling work in any direction without outriggers
  • Heavy-duty boom rollers, along with an exceptionally rugged boom
  • Roller assembly can be removed for easy maintenance
  • Level working height is adjustable
  • Three-section non-tilting boom is cable actuated
  • Internal metal hose and tube clamps
  • Consistent boom force
  • Rugged boom telescopes out up to 48’
  • Low profile telescoping action, reaching deep into furnaces
  • Full-length boom visibility during the entire working cycle
  • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
  • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
  • Internal tooth swing bearing provides smooth, stable movement
  • Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
  • Excellent visibility of the boom through the entire working cycle
  • Standard air conditioning
  • Optional rollover protection
  • Window guards
  • High temperature glass
  • Legendary Bosch Rexroth design and reliability
  • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
  • Combined electrical system for chassis and excavator delivers advanced, effective operation
  • Heavy frame for lateral support
  • Heavy boom cradle
  • Crawlers have thicker grouse pads for work at the side of the carrier
  • Telescoping boom design delivers full power and speed through the entire working range
  • Electronic joysticks provide precise control over boom and attachment positioning
Chassis Design

MAINTENANCE MACHINES AT WORK

    ALUMINUM SMELTING

  • Handle pot cleaning and furnace teardowns

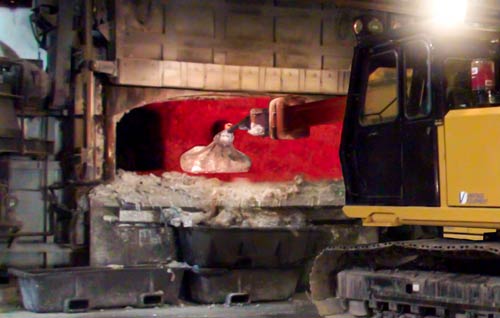

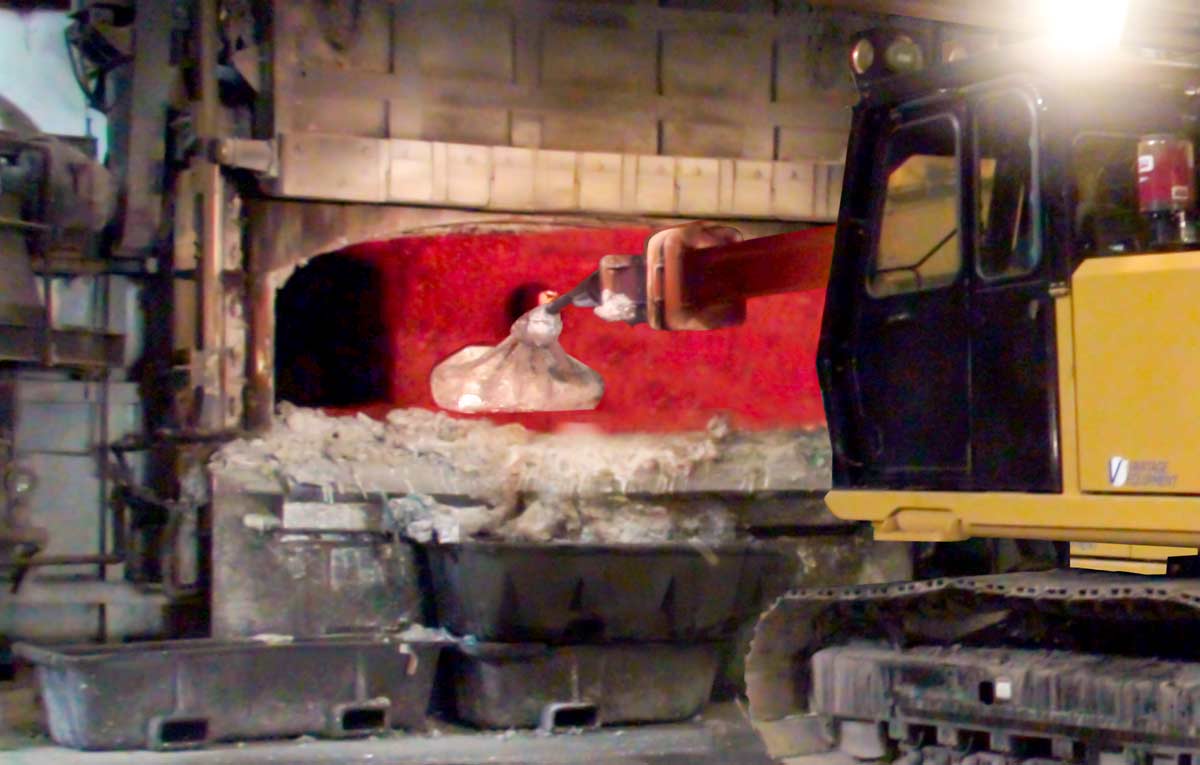

  • Reach through mouth of furnace for dross removal and cleaning
Gradall At Work Background

LATEST JOB STORY

OSWEGO, NEW YORK

Gradall machine meets aluminum mill needs for superior dross skimming

GET THE FULL STORY

EXCAVATOR ATTACHMENTS

MAXIMIZE GRADALL PRODUCTIVITY

Attachment Adaptor
Attachment Adaptor
Auxiliary Hydraulics
Auxiliary Hydraulics
Barrier Handling
Barrier Handling
Boom Extensions
Boom Extensions
Crushers
Crushers
Ditching Buckets
Ditching Buckets
Dredging Buckets
Dredging Buckets
Excavating Buckets
Excavating Buckets
Grading Blade
Grading Blade
Fixed Thumb Grapple
Fixed Thumb Grapple
Hammers
Hammers
Mowers
Mowers
Pavement Removal Bucket
Pavement Removal Bucket
Quadrail Cleanout
Guardrail Cleanout
Quick Switch
Quick Switch
Rotary Brushcutter
Rotary Brushcutter
Single Tooth Ripper
Single Tooth Ripper
Telestick
Telestick
Tree Limb Sheer
Tree Limb Sheer
Trenching Buckets
Trenching Buckets
VIEW ALL ATTACHMENTS

ONE MAN. ONE MACHINE.

THE GRADALL DIFFERENCE

It starts with the unique telescoping Gradall boom that handles more jobs efficiently, thanks to its movements and superior strength. Gradall offers a unique range of excavator undercarriages that have reshaped the industry idea of equipment mobility, both on and off highways.
