PRICING

Use the tabs below to see current pricing for Gradall excavator models, options and attachments.

Pricing is for whole goods only. For pricing on aftermarket options and attachments, call the Gradall factory at (800) 445-4752

Gradall is a Sourcewell contract supplier

Members of the Sourcewell cooperative purchasing agency can purchase Gradall machines without going through an extensive bidding process.

LEARN MORE
Sourcewell Awarded Contract

SP89 - Effective January 1, 2024

DOWNLOAD PRICING PDF
Corner Gif

MODELS

Corner Gif

OPTIONS

Corner Gif

ATTACHMENTS

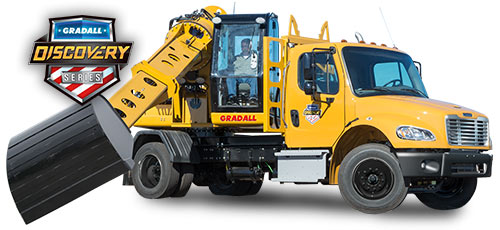

DISCOVERY SERIES CROSSOVER HIGHWAY SPEED EXCAVATORS

Discovery Series excavators are the cost-effective solution for governments and contractors who need to get to jobs faster, complete many different jobs with fewer men and machines, all while keeping within tight equipment budgets. Both two-wheel and four-wheel-drive models feature the famous telescoping, tilting Gradall boom as well as a Freightliner truck chassis.

Discovery Series Excavator
MODEL NET WEIGHT LBS (kg) PRICE
D172 4x2 32,200 (14,600) $368,092
D174 4x4 34,500 (15,650) $390,910

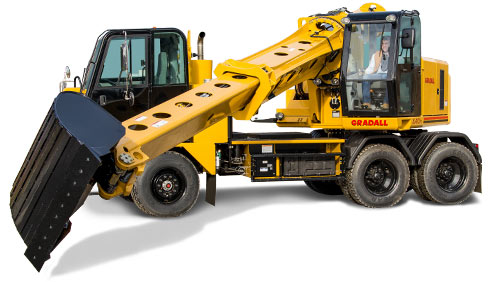

HIGHWAY SPEED WHEELED EXCAVATORS

Highway speed excavators can be driven up to 60 mph, eliminating the need for a lowboy trailer while they move quickly to job sites and then back to the safety of the equipment yard. Series V models feature full tilting telescoping booms and new Tier 4 final compliant Volvo engines as well as AutoDrive™ mobility advantages including an automatic transmission and other advantages.

Gradall Highway Speed Wheel Excavators
MODEL NET WEIGHT LBS (kg) PRICE
XL 3100 V 4x2 40,930 (18,566) $497,769
XL 3100 V 4x4 41,720 (18,924) $517,389
XL 4100 V 6x4 49,684 (22,539) $566,368
XL 4100 V 6x6 50,925 (23,099) $581,998
XL 5100 V 6x4 57,670 (26,159) $620,159
XL 5100 V 6x6 58,379 (26,488) $646,945

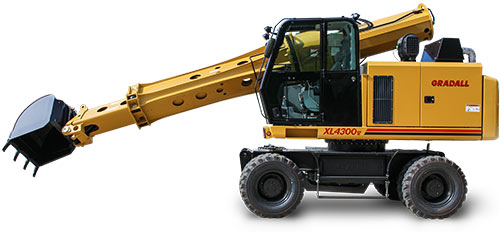

ROUGH TERRAIN WHEELED EXCAVATORS

Excellent stability allows rough terrain wheeled excavator models to pick and carry large loads as well as work at the front, rear or either side of the carrier - all without the need for optional outriggers. A highly mobile undercarriage on Series V models moves easily over both pavement and dirt, all powered by a Tier 4 final compliant Volvo engine. The low-profile telescoping boom can work under bridges and trees, accomplishing more work with full boom tilt advantage.

Gradall Rough Terrain Wheeled Excavators
MODEL NET WEIGHT LBS (KG) PRICE
XL 3300 V 39,294 (17,823) $421,726
XL 4300 V 43,580 (19,768) $462,685
XL 5300 V 51,216 (23,231) $524,493

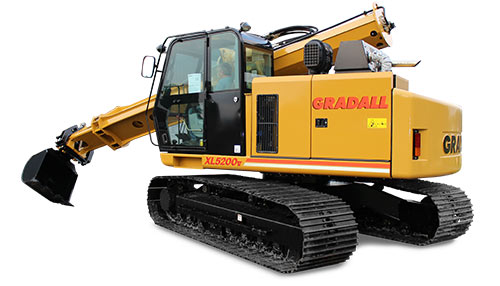

CRAWLER EXCAVATORS

Series V crawler models feature Tier 4 final compliant Volvo engines and other advantages, preparing them for cost-efficient, highly productive versatility on mud, rocks, sand and dirt. Versatility is rooted in the legendary full-tilting, telescoping boom that can do more with more attachments, even working under bridges and in tunnels where conventional booms won't fit.

Gradall Crawler Excavators
MODEL NET WEIGHT LBS (kg) PRICE
XL 3200 V 39,240 (17,799) $374,634
XL 4200 V 46,862 (21,256) $421,772
XL 5200 V 54,452 (24,699) $497,954

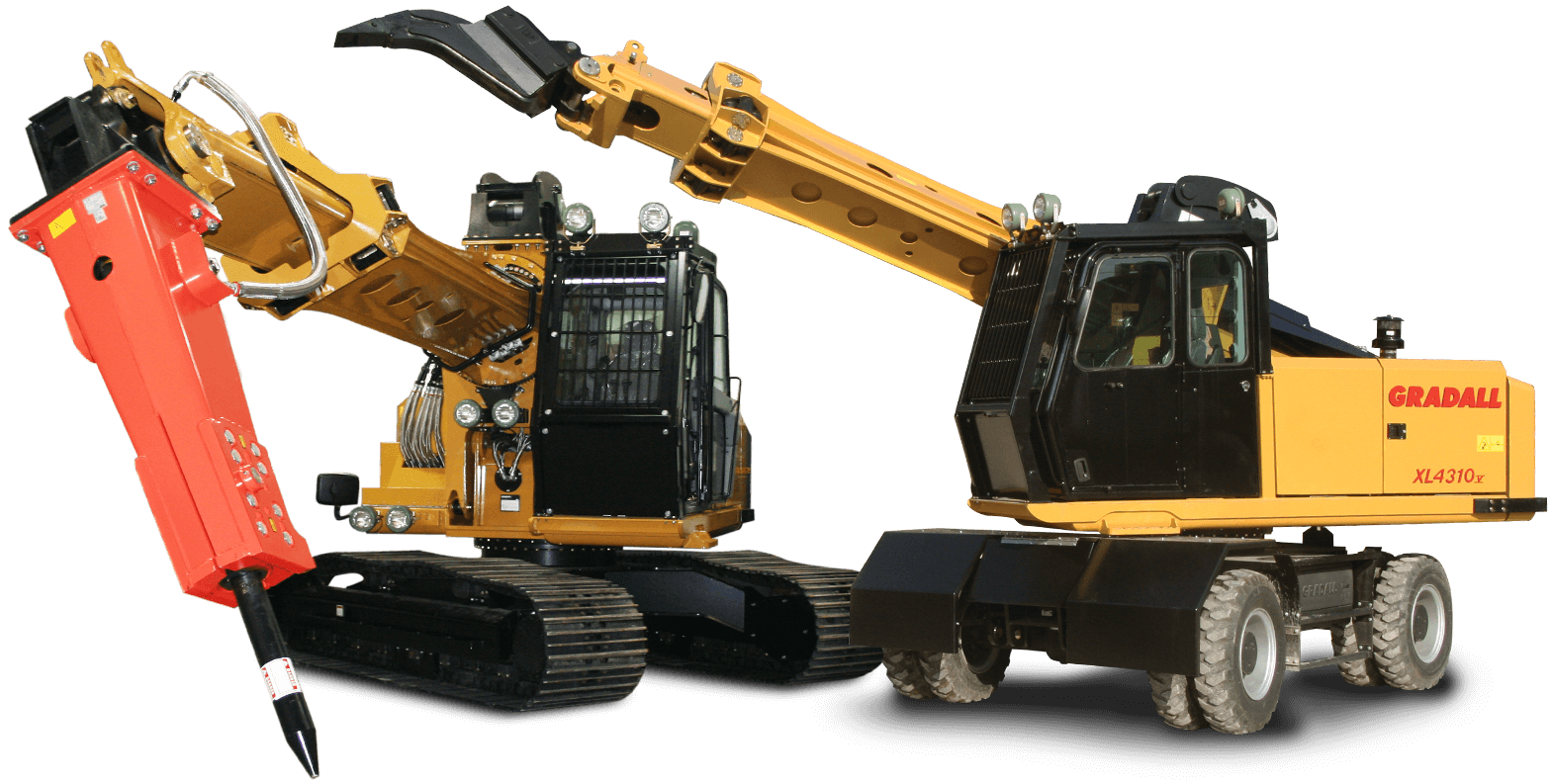

STEEL MILL MAINTENANCE MACHINES

Rugged Gradall steel mill maintenance machines bring needed versatility into demanding metal mill environments. From ground level to boom end, these machines are built and tested for tough and efficient work in furnaces with extra telescoping boom range and 360° attachment rotation.

Gradall Steel Mill Machines
CRAWLER MODELS NET WEIGHT LBS (kg) PRICE
XL 3210 V 44,327 (20,106) Contact Factory
XL 4210 V 48,862 (22,163) Contact Factory
XL 5210 V 59,162 (26,835) Contact Factory
XL 7210 V 79,000 (35,970) Contact Factory
WHEELED MODELS NET WEIGHT LBS (kg) PRICE
XL 3310 V 42,294 (19,184) Contact Factory
XL 4310 V 46,580 (21,128) Contact Factory
XL 5310 V 55,926 (25,368) Contact Factory
XL 7310 V 77,500 (35,153) Contact Factory

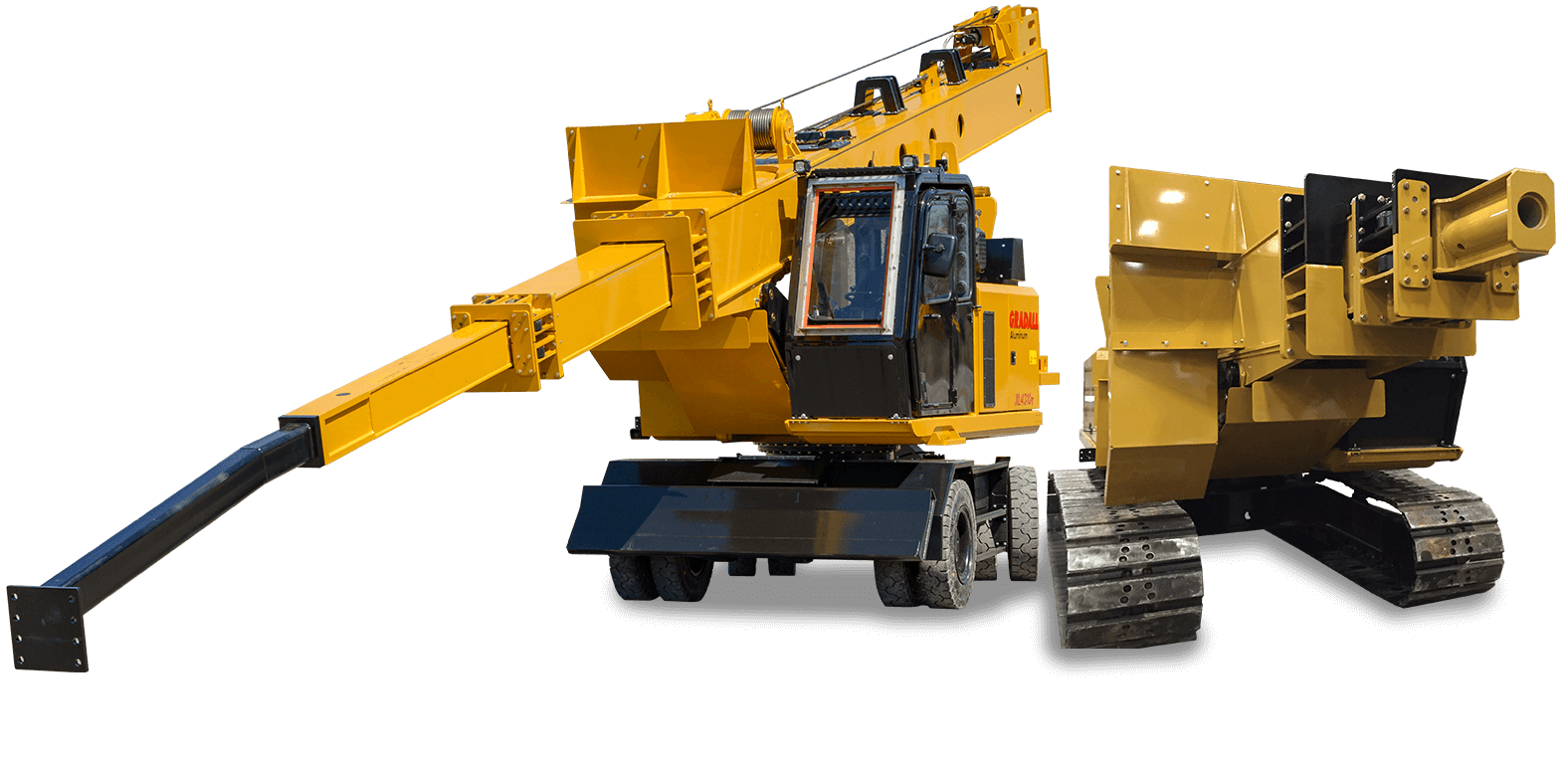

ALUMINUM MILL MAINTENANCE MACHINES

Gradall aluminum mill maintenance machines are rugged machines specially designed to efficiently skim dross and maintain walls and bottoms in aluminum furnaces. The tough boom articulates effectively to work inside furnaces.

Gradall Aluminum Mill Machines
CRAWLER MODELS NET WEIGHT LBS (kg) PRICE
XL 4240 V 67,500 (30,617) Contact Factory
WHEELED MODELS NET WEIGHT LBS (kg) PRICE
XL 4340 V 68,220 (30,944) Contact Factory

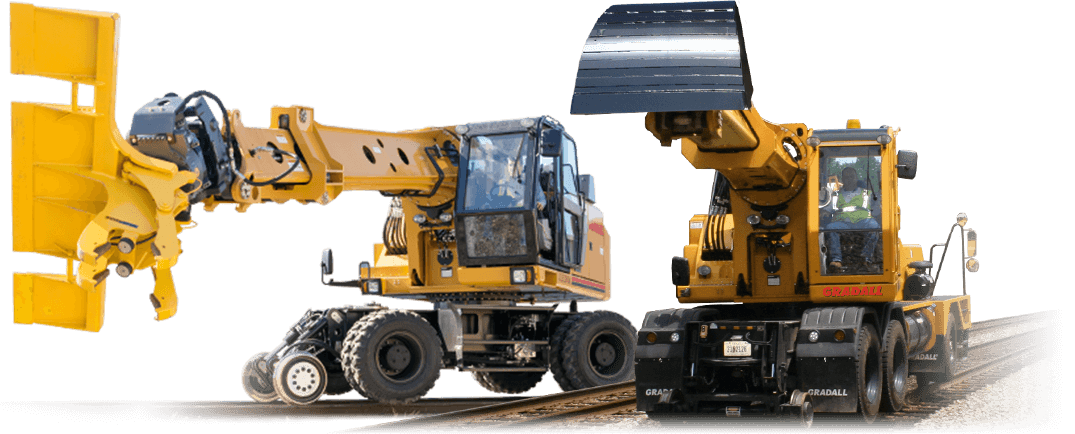

RAILWAY MAINTENANCE MACHINES

The industry’s most versatile and mobile railway maintenance machine is the do-it-all solution for rail repairs, construction, vegetation control, ballast spreading and more.

Gradall Aluminum Mill Machines
HIGHWAY SPEED MODELS NET WEIGHT LBS (kg) PRICE
XL 4130 V RD 54,500 (24,720) Contact Factory
XL 5130 V RD 62,500 (28,350) Contact Factory
WHEELED MODELS NET WEIGHT LBS (kg) PRICE
XL 3330 V 43,034 (19,520) Contact Factory
XL 4330 V 47,320 (21,464) Contact Factory
XL 5330 V 55,200 (25,038) Contact Factory

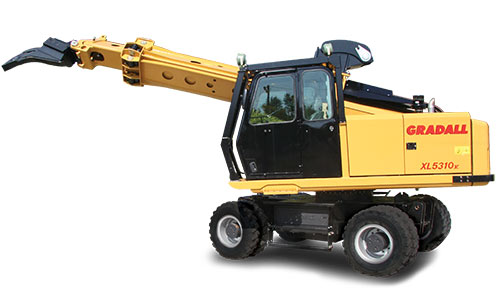

MINE SCALING MACHINES

Gradall's mine scalers are specially engineered to handle the rigors of mine scaling, with a powerful boom that rotates for efficient mine scaling at hard-to-reach angles.

Gradall Industrial Maintenance Machines with All-Terrain Wheeled Undercarriage
WHEELED MODELS NET WEIGHT LBS (KG) PRICE
XL 3320 V 42,294 (19,184) Contact Factory
XL 4320 V 46,580 (21,128) Contact Factory
XL 5320 V 55,926 (25,368) Contact Factory
XL 7320 V 77,500 (35,153) Contact Factory
CRAWLER MODELS NET WEIGHT LBS (KG) PRICE
XL 3220 V 44,327 (20,106) Contact Factory
XL 4220 V 48,862 (22,163) Contact Factory
XL 5220 V 59,162 (26,835) Contact Factory

UPPERSTRUCTURE OPTIONS

DISCOVERY SERIES CROSSOVER HIGHWAY SPEED WHEELED EXCAVATORS

NUMBER DESCRIPTION D152 4x2 D154 4x4
80769043K CAMERA SYSTEM
80865008K FIRE EXTINGUISHER 10# - UPPER
82139002K AUX HYDRAULICS - BI-DIRECTIONAL
82179008K BEACON, SINGLE LED WITH BRANCH GUARD - UPPER
82179009K WORK LIGHTS, LED

CHASSIS OPTIONS

DISCOVERY SERIES CROSSOVER HIGHWAY SPEED WHEELED EXCAVATORS

NUMBER DESCRIPTION D152 4x2 D154 4x4
80789080 FIRE EXTINGUISHER 10# - CHASSIS WITH COVER
82179007K FBEACON, DUAL BEAM, LED WITH BRANCH GUARD - CHASSIS
82189020K STEP, PASSENGER SIDE
82189021K STEP DRIVER'S (LH) SIDE REAR
82189022K STEP, PASSENGER SIDE (RH) REAR
82189047K ENGINE BLOCK HEATER

UPPERSTRUCTURE OPTIONS

HIGHWAY SPEED WHEELED EXCAVATORS

NUMBER DESCRIPTION XL 3100 XL 4100 XL 5100
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - MOTOR SPOOL
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - CYLINDER SPOOL
80865008 FIRE EXTINGUISHER 10# - UPPER
PAINT, SPECIAL, ONE COLOR, BLACK CABS
PAINT, SPECIAL, ONE COLOR, INCLUDING CABS
80365013 SEAT BELT - UPPER
80465069 STROBE LIGHT - UPPER CAB
80763114 VANDAL COVER INSTALLATION - UPPER CAB

CHASSIS OPTIONS

HIGHWAY SPEED WHEELED EXCAVATORS

NUMBER DESCRIPTION XL 3100 XL 4100 XL 5100
80789150 AIR CONDITIONING INSTALLATION - CHASSIS
X3105065 AIR RESTRICTION GAUGE - CHASSIS CAB
80789070 AM/FM STEREO RADIO / WEATHERBAND - CHASSIS
80483243 BATTERY - INTERSTATE OPTIMA - MAINTENANCE FREE - SPIRAL WOUND CELLS
80789173 BLOCK HEATER
BOOM REST FOR TELESTICK
80789068 BUCKET CARRIER ASSEMBLY
80789080 FIRE EXTINGUISHER 10# - CHASSIS WITH COVER
80485043 LEFT HAND REAR STEP
80385057 PROTECTO - SEAL LOCKING FUEL CAP W/ KEY
RAILGEAR "READY" OPTION
RAILGEAR OPTION - COMPLETE INSTALLATION
80785089 SPARE FRONT TIRE / WHEEL ASSEMBLY, 385/65R 22.5 (4x2,6x4)
80785090 SPARE FRONT TIRE / WHEEL ASSEMBLY, 425/65R 22.5 (4x4,6x6)
80785088 SPARE REAR TIRE / WHEEL ASSEMBLY, 11R/24.5 (4x2, 4x4, 6x4, 6x6)
80789180 STROBE LIGHT - CHASSIS
80785044 TRAVEL ALARM - ADJUSTABLE VOLUME
80783250 VANDAL COVER INSTALLATION - CHASSIS

UPPERSTRUCTURE OPTIONS

ROUGH TERRAIN WHEELED EXCAVATORS

NUMBER DESCRIPTION XL 3300 XL 4300 XL 5300
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - MOTOR SPOOL
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - CYLINDER SPOOL
80779046 ENGINE BLOCK HEATER
80865008 FIRE EXTINGUISHER 10# - UPPER
PAINT, SPECIAL, ONE COLOR, BLACK CABS
PAINT, SPECIAL, ONE COLOR, INCLUDING CABS
80465069 STROBE LIGHT - UPPER CAB
80763114 VANDAL COVER INSTALLATION - UPPER CAB
80755015 BUCKET HOLD OPEN KIT, MECHANICAL
80434319 BUCKET HOLD OPEN KIT, HYDRAULIC

CHASSIS OPTIONS

ROUGH TERRAIN WHEELED EXCAVATORS

NUMBER DESCRIPTION XL 3300 XL 4300 XL 5300
80795015 OUTRIGGER / STABILIZER OPTION
RAILGEAR OPTION - COMPLETE INSTALLATION
80795002 SPARE TIRE / WHEEL ASSEMBLY, LEFT INNER
80795003 SPARE TIRE / WHEEL ASSEMBLY, LEFT OUTER
80795004 SPARE TIRE / WHEEL ASSEMBLY, RIGHT INNER
80795005 SPARE TIRE / WHEEL ASSEMBLY, RIGHT OUTER
SPECIAL "OFF - SET" INNER WHEEL ASSY'S ( 4 ) FOR RAIL GEAR OPTION
TRAVEL ALARM - ADJUSTABLE VOLUME
80795016 BACKFILL BLADE
80895003 BACKFILL BLADE

UPPERSTRUCTURE OPTIONS

CRAWLER EXCAVATORS

NUMBER DESCRIPTION XL 3200 XL 4200 XL 5200
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - MOTOR SPOOL
AUX. HYDRAULICS W/ AUX. HYD. PLUMBING - CYLINDER SPOOL
80779046 ENGINE BLOCK HEATER
80865008 FIRE EXTINGUISHER 10# - UPPER
PAINT, SPECIAL, ONE COLOR, BLACK CABS
PAINT, SPECIAL, ONE COLOR, INCLUDING CABS
80365013 SEAT BELT - UPPER
80769025 STROBE LIGHT - UPPER CAB
80769034 TRAVEL ALARM, ADJUSTABLE VOLUME
80763114 VANDAL COVER INSTALLATION - UPPER CAB
80755015 BUCKET HOLD OPEN KIT, MECHANICAL
80434319 BUCKET HOLD OPEN KIT, HYDRAULIC

DISCOVERY SERIES ATTACHMENTS

NUMBER DESCRIPTION D152 4x4 D154 4x6
82155003 GRAPPLE - FIXED THUMB
82155004 LIMB SHEAR
82155005 ROTARY MOWER, TIGER BRAND 50"
82155006 FLAIL MOWER, TIGER BRAND 40"
82156004 BUCKET - PAVEMENT REMOVAL 24"
82156008 BUCKET - EXCAVATING 36"
82156015 BUCKET - EXCAVATING 24"
82156009 BUCKET - DITCHING - 60" STANDARD (ORDER 82155001 FOR BOLT ON EDGE)
82155001 BOLT ON CUTTING EDGE FOR B2156009 60" DITCH BUCKET

XL SERIES EXCAVATORS ATTACHMENTS

NUMBER DESCRIPTION XL3000 XL4000 XL5000
80656037 ATTACHMENT ADAPTER - BLANK
80655033 AUX. HYD. HOSES FOR 4' BOOM EXTENSION
80655034 AUX. HYD. HOSES FOR 6' BOOM EXTENSION
80655035 AUX. HYD. HOSES FOR 8' BOOM EXTENSION
80655036 AUX. HYD. HOSES FOR 12' BOOM EXTENSION
80655028 BOOM EXTENSION - 4 FT.
80655029 BOOM EXTENSION - 6 FT.
80655030 BOOM EXTENSION - 8 FT.
80655031 BOOM EXTENSION - 12 FT.
80656040 BUCKET - DITCHING - 30"
80656007 BUCKET - DITCHING - 60"
80656034 BUCKET - DITCHING - 60" CONSTANT RADIUS
80656092 BUCKET - DITCHING - 60" W/ BOLT ON CUTTING EDGE
80656006 BUCKET - DITCHING - 66" CONSTANT RADIUS
80656093 BUCKET - DITCHING - 66" W/ BOLT ON CUTTING EDGE
80656002 BUCKET - DITCHING - 72"
80656118 BUCKET - DITCHING - 72" (1.6 CU. YD.)
80656094 BUCKET - DITCHING - 72" W/ BOLT ON CUTTING EDGE
80656029 BUCKET - DREDGING 108"
80656013 BUCKET - DREDGING 72"
80456020 BUCKET - EXCAVATING - 24"
80456021 BUCKET - EXCAVATING - 30"
80456022 BUCKET - EXCAVATING - 36"
80456023 BUCKET - EXCAVATING - 42"
80456024 BUCKET - EXCAVATING - 48"
80656065 BUCKET - EXCAVATING 24" W/OUT TEETH
80656115 BUCKET - PAVEMENT REMOVAL - 18" (CURBING)
80656116 BUCKET - PAVEMENT REMOVAL - 24" (CURBING)
80656114 BUCKET - PAVEMENT REMOVAL - 28"
80656102 BUCKET - PAVEMENT REMOVAL - 40"
80656119 BUCKET - PAVEMENT REMOVAL - 48"
80656104 BUCKET - TRENCHING - 15"
80656012 BUCKET - TRENCHING - 21"
80755023 FIXED THUMB GRAPPLE
80656024 GRADING BLADE - 8 FT.
80656035 GUARDRAIL CLEAN-OUT
80455052 TREE LIMB SHEAR
80756038 SINGLE TOOTH RIPPER
TELESTICK BOOM EXTENSION & BUCKET
TELESTICK BOOM EXTENSION & BUCKET
80755034 ADJUSTABLE ANGLE 7' BOOM EXTENSION
