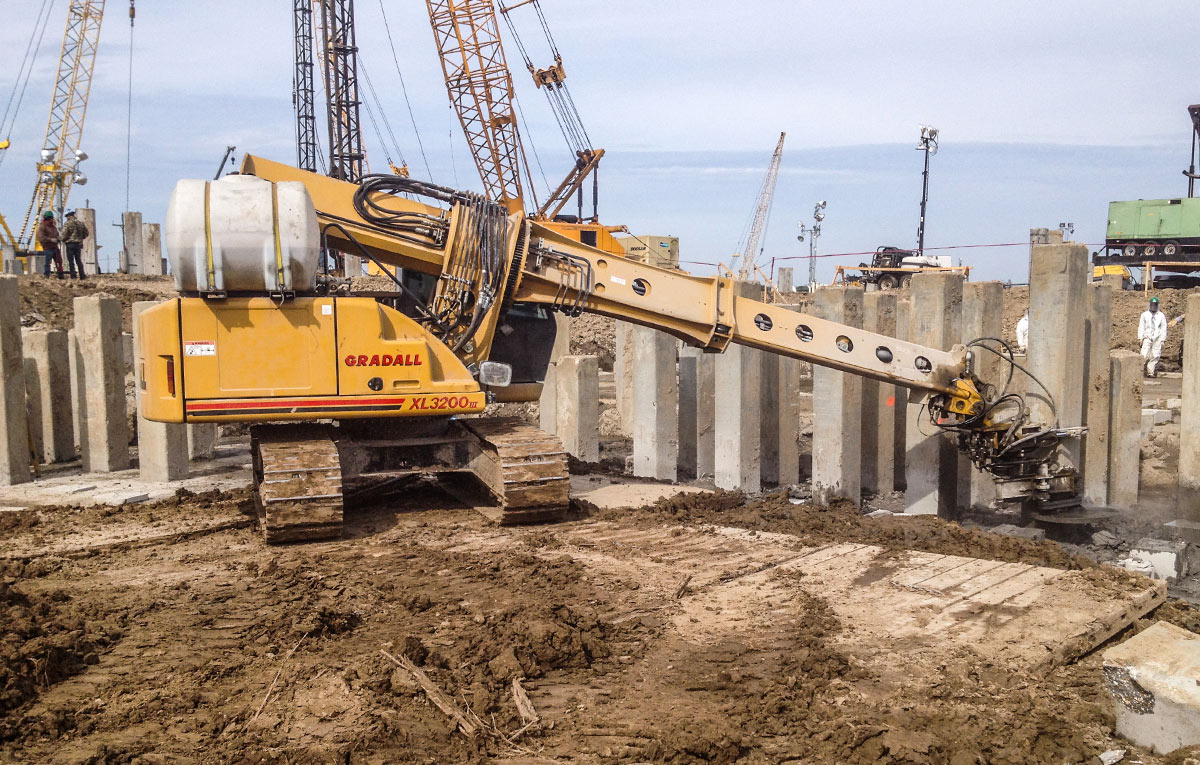

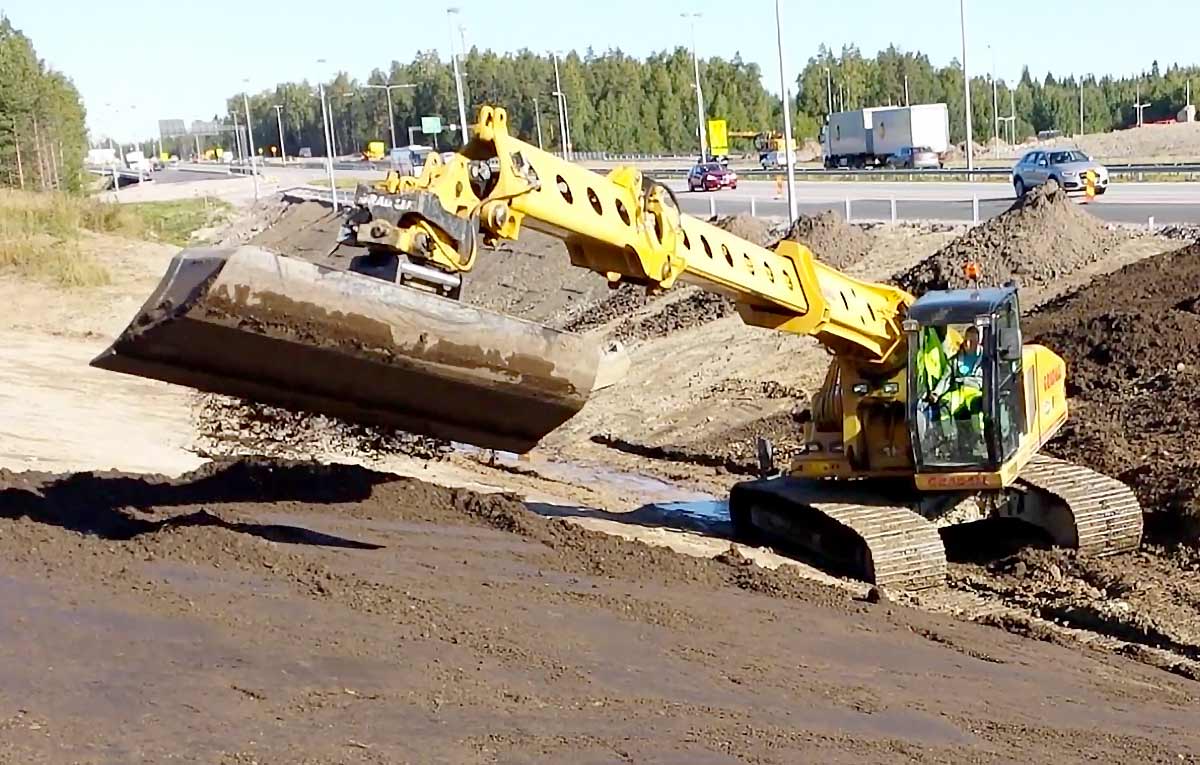

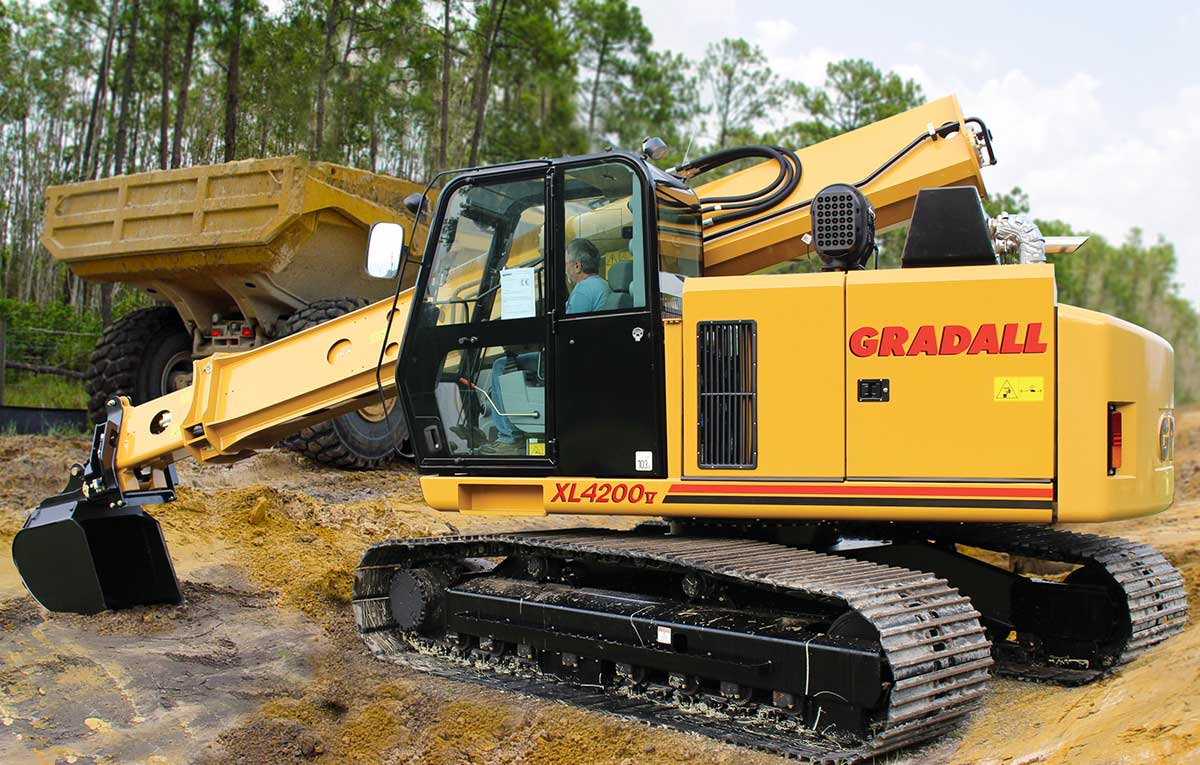

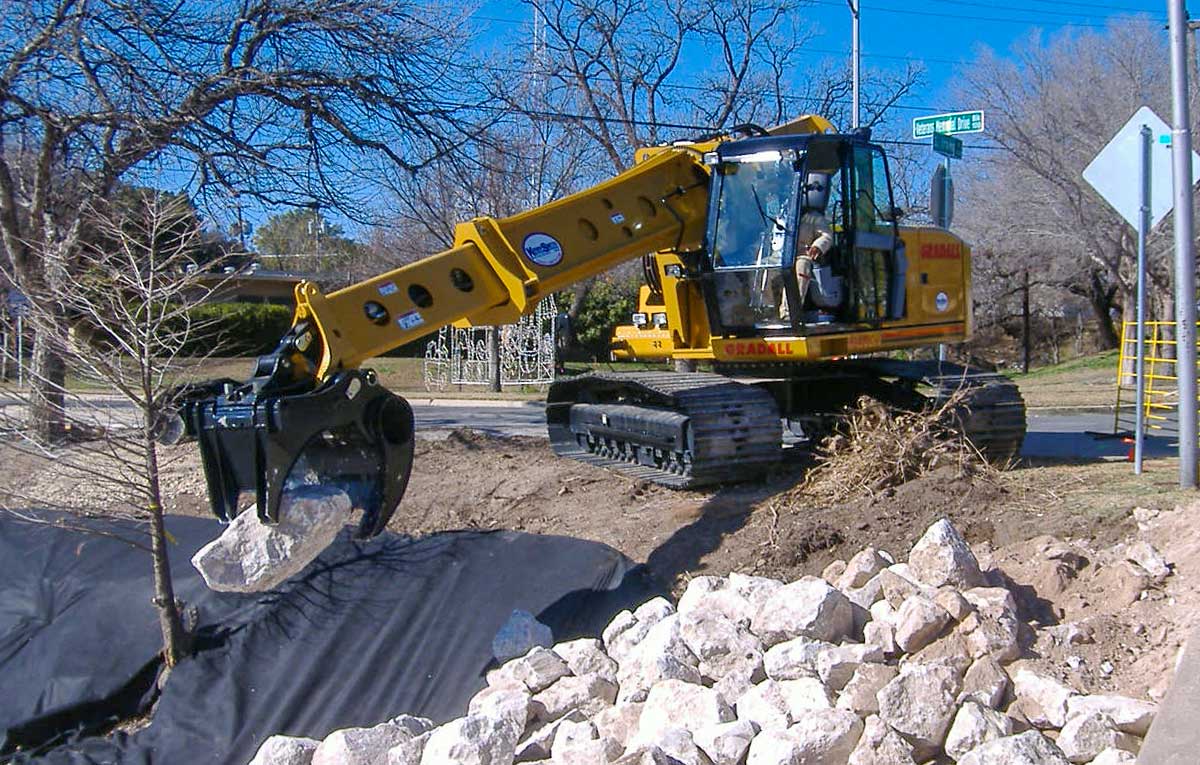

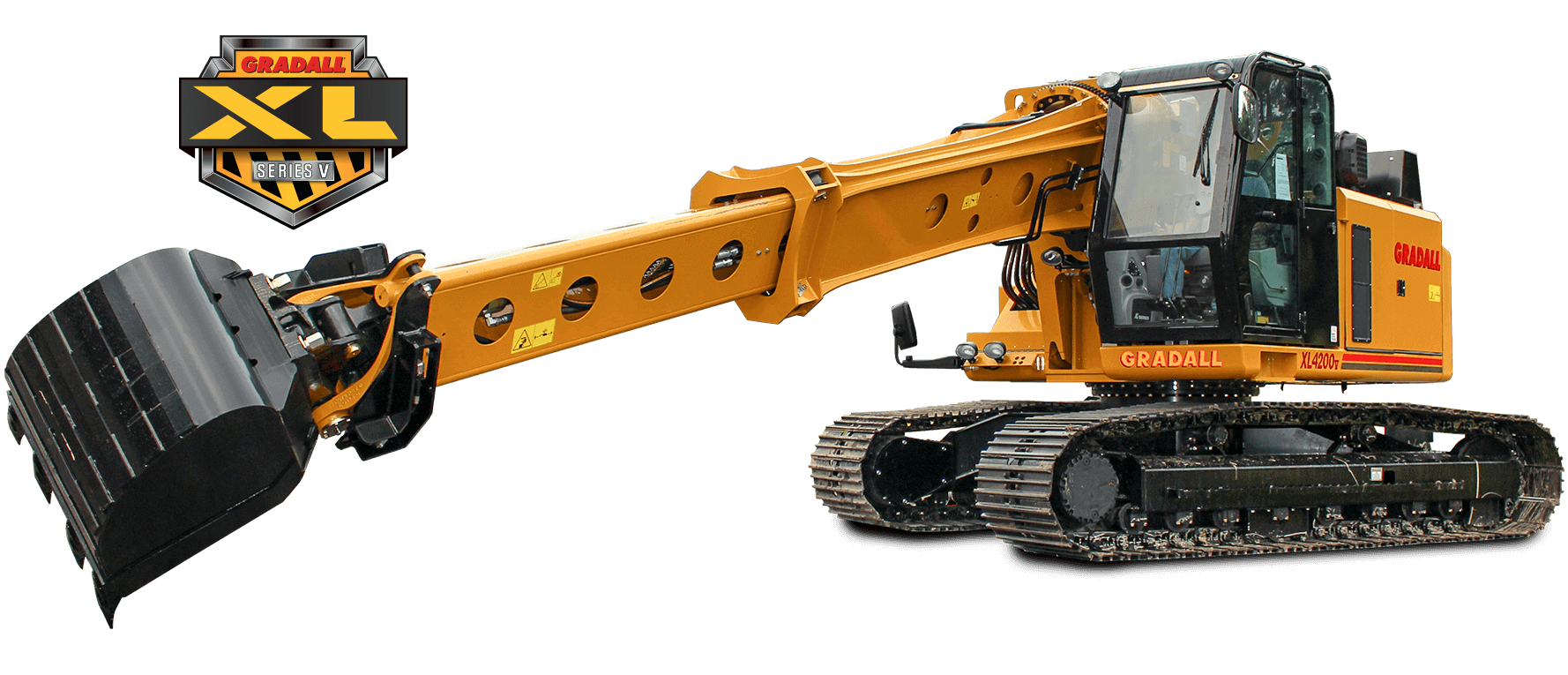

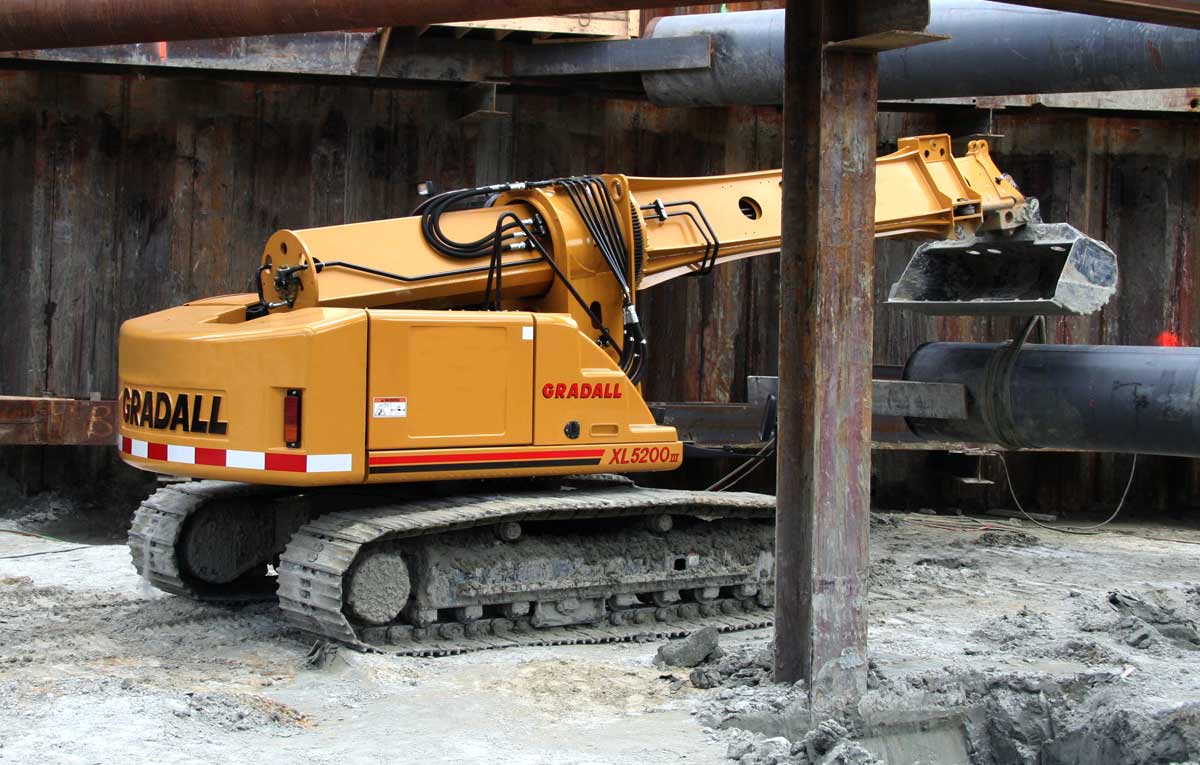

Raising crawler excavator expectations
No other crawler can handle so many different jobs, even working in tunnels, under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements.
Gradall is a Sourcewell contract supplier
Members of the Sourcewell cooperative purchasing agency can purchase Gradall machines without going through an extensive bidding process.
LEARN MORE![Sourcewell Awarded Contract](../img/sourcewell/sourcewell-widget.png)
FEATURES

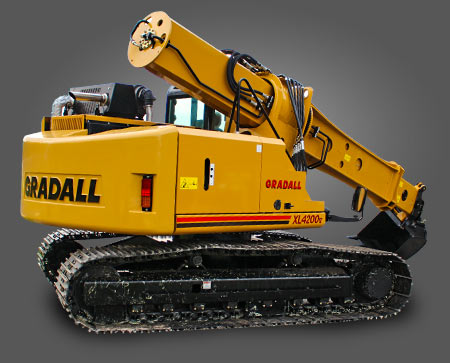

- CHASSIS DESIGN
- CHASSIS DESIGN
- BOOM
- OPERATOR CAB
- ADVANCED SYSTEMS
- EXCAVATOR
OPERATING RANGE & PERFORMANCE | XL 3200 V | XL 4200 V | XL 5200 V |
---|---|---|---|
Engine Standard | Volvo TAD571 VE Tier 4f 5.1L | Volvo TAD571 VE Tier 4f 5.1L | Volvo TAD571 VE Tier 4f 5.1L |
HP @ RPM | 172/2,000 | 173/2,200 | 173/2,200 |
Max Digging Depth | 19' 2" (5.8 m) | 22' 0" (6.7 m) | 25' 4" (7.7 m) |
Max. Radius at Groundline | 27' 5" (8.4 m) | 30' 6" (9.3 m) | 33' 11" (10.3 m) |
Max. Loading Height | 14' 9" (4.5 m) | 16' 3" (5.0 m) | 17' 11" (5.5 m) |
Max. Work Hgt., (Boom below grade) | 14' 0" (4.3 m) | 14' 0" (4.3 m) | 14' 0" (4.3 m) |
Boom Telescope | 11' 0" (3.4 m) | 12' 6" (3.8 m) | 14' 0" (4.3 m) |
Boom Tilt | 220° | 220° | 220° |
Bucket Pivot Angle | 165° | 165° | 165° |
Rated Boom Force | 22,075 lb (98.2 kN) | 22,075 lb (98.2 kN) | 24,941 lb (111 kN) |
Rated Bucket Breakout Force | 19,300 lb (86 kN) | 25,405 lb (113 kN) | 25,405 lb (113 kN) |
Max. Lift Capacity | 8,200 lb (3,720 kg) | 12,590 lb (5,710 kg) | 13,764 lb (6,243 kg) |
WEIGHTS & DIMENSIONS | XL 3200 V | XL 4200 V | XL 5200 V |
---|---|---|---|
Operating Weight | 39,240 lb (17,799 kg) | 46,862 lb (21,256 kg) | 54,452 lb (24,699 kg) |
Swing Clearance | 7' 6" (2.3 m) | 8' 0" (2.4 m) | 8' 6" (2.6 m) |
Transport Length w/ Bucket | 24' 6" (7.5 m) | 26' 6" (8.1 m) | 28' 11" (8.8 m) |
Transport Height w/ Bucket | 10' 9" (3.3 m) | 10' 9" (3.3 m) | 10' 9" (3.3 m) |
Transport Width w/ Bucket | 8' 6" (2.6 m) | 10' 6" (3.2 m) | 10' 6" (3.2 m) |
UNDERCARRIAGE | XL 3200 V | XL 4200 V | XL 5200 V |
---|---|---|---|
Travel Speed | 3.4 mph (5.5 kph) | 3.4 mph (5.5 kph) | 3.4 mph (5.5 kph) |
Track Length | 11' 9" (3.6 m) | 13' 8" (4.2 m) | 13' 8" (4.2 m) |
Pad Width | 23.6" (600 mm) | 31.5" (800 mm) | 31.5" (800 mm) |
Ground Bearing Pressure | 7.5 psi/51.7 kPa | 5.7 psi/39.3 kPa | 6.6 psi/45.5 kPa |
Ground Clearance | 18" (454 mm) | 18" (454 mm) | 18" (454 mm) |
ATTACHMENTS | XL 3200 V | XL 4200 V | XL 5200 V |
---|---|---|---|
Trenching Buckets | ✓ | ✓ | ✓ |
Excavating Buckets | ✓ | ✓ | ✓ |
Ditch Cleaning Buckets | ✓ | ✓ | ✓ |
Dredging Buckets | ✓ | ✓ | ✓ |
Pavement Removal Buckets | ✓ | ✓ | ✓ |
Grading Blades | ✓ | ✓ | ✓ |
Telestick | ✓ | ✓ | |
Boom Extensions | ✓ | ✓ | ✓ |
Hydraulic Hammers | ✓ | ✓ | ✓ |
Grapples | ✓ | ✓ | ✓ |
Flail Mowers | ✓ | ✓ | ✓ |
Rotary Mowers | ✓ | ✓ | ✓ |
DOWNLOAD LITERATURE (PDF)
SERIES V BROCHURE![Brochure](/img/products/models/highway/literature-highway.jpg)
- Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
- Dual range high torque piston motor powers each track.
- To ensure travel and stopping capability, models have three-stage planetary drive, with integral speed limiting valve, and automatic spring-set hydraulic release wet disc parking brake
- Triple grouser excavator pads in a choice of widths enhance tracking ability on rough terrain, with high range travel speeds up to 3.4 mph
- Tracks counter-rotate to pivot machine about the swing centerline
- Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
- No loss of power to attachment tilting capability
- Consistent boom force through the entire dig cycle
- Dig down at 75° angle
- Rugged boom telescopes out up to 33’ 10”

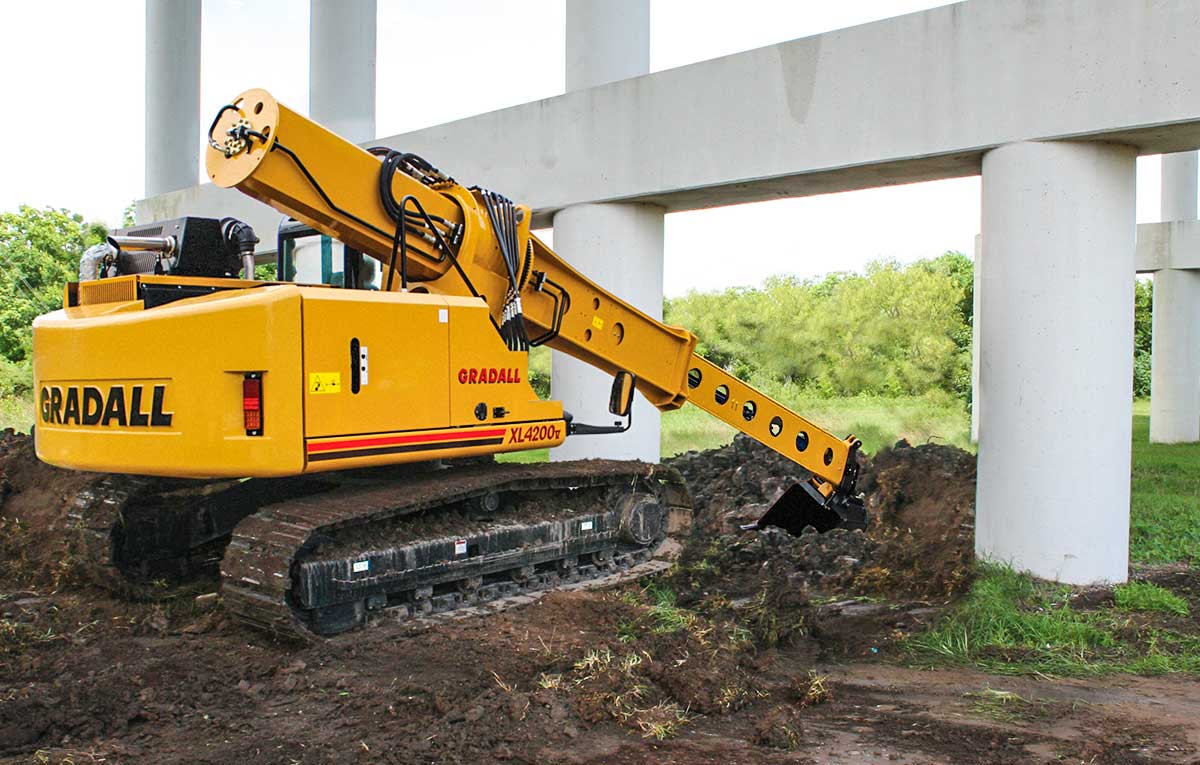

- Low profile for work under bridges, trees and in tunnels
- Full-length boom visibility during the entire dig cycle
- Fast cycle times for ditching, loading and spreading
- Quick attach bolt system handles full range of attachments
- Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
- Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
- Internal tooth swing bearing provides smooth, stable movement
- Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
- Excellent visibility of the boom through the entire dig cycle
- Standard air conditioning
- Optional rollover protection
- Removable, stowable front window brings fresh air into the cab
- High performance, high reliability 24-volt electrical system
- Legendary Bosch Rexroth design and reliability
- All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages
- Short tail swing won't obstruct traffic
- Stable digging platform for work in any direction, without need to stop and lower outriggers
- Triangular telescoping boom design, with full power through the entire dig cycle
- Cycle speeds comparable or exceeding conventional excavators
- Electronic joysticks provide precise control over boom and attachment positioning
![Chassign Design](/img/products/models/crawlers/feature-chassis.jpg)
![Gradall at Work Logo](/img/gradall-at-work-logo.png)
GRADALL CRAWLER VERSATILITY
- Asphalt and concrete repair
- Mass excavation
- Demolition
- Ditching
- Sloping
- Finished grading
- Spreading rip-rap
- Curb, gutter and sidewalk replacement
- Storm and canal cleanout
- Material movement
- Culvert replacement
- Guardrail cleanout
- Debris cleanup
- Bridge replacement
- Landscaping
- Dredging
![Gradall At Work Background](/img/atwork-photo-bg.gif)
![](/img/job-stories/gradall-at-work-104.jpg)
LATEST JOB STORY

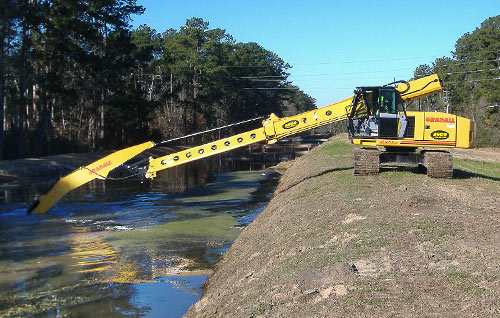

CONROE, TEXAS

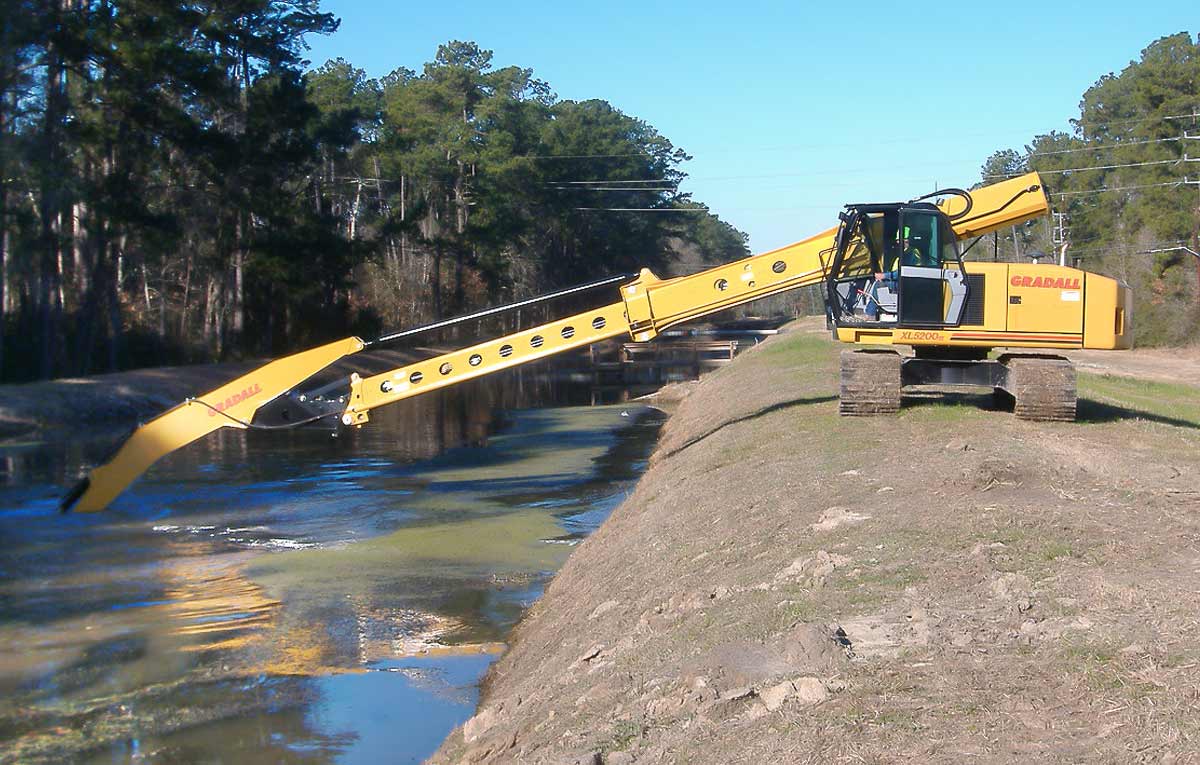

Big reach Telestick attachment clears canal, supplying water for businesses and municipalities
GET THE FULL STORYEXCAVATOR ATTACHMENTS
MAXIMIZE GRADALL PRODUCTIVITY
![Attachment Adaptor](/img/attach-thumbs/attach-adaptor.jpg)
![Auxiliary Hydraulics](/img/attach-thumbs/attach-auxiliary-hydraulics.jpg)
![Barrier Handling](/img/attach-thumbs/attach-barrier-handling.jpg)
![Boom Extensions](/img/attach-thumbs/attach-boom-extension.jpg)
![Crushers](/img/attach-thumbs/attach-crushers.jpg)
![Ditching Buckets](/img/attach-thumbs/attach-ditching-bucket.jpg)
![Dredging Buckets](/img/attach-thumbs/attach-dredging-buckets.jpg)
![Excavating Buckets](/img/attach-thumbs/attach-excavating-bucket.jpg)
![Grading Blade](/img/attach-thumbs/attach-grading-blade.jpg)
![Fixed Thumb Grapple](/img/attach-thumbs/attach-grapple.jpg)
![Hammers](/img/attach-thumbs/attach-hammers.jpg)
![Mowers](/img/attach-thumbs/attach-mowers.jpg)
![Pavement Removal Bucket](/img/attach-thumbs/attach-pavement-removal-bucket.jpg)
![Quadrail Cleanout](/img/attach-thumbs/attach-guardrail-cleanout.jpg)
![Quick Switch](/img/attach-thumbs/attach-quick-switch.jpg)
![Rotary Brushcutter](/img/attach-thumbs/attach-rotary-brushcutter.jpg)
![Single Tooth Ripper](/img/attach-thumbs/attach-single-tooth-ripper.jpg)
![Telestick](/img/attach-thumbs/attach-telestick.jpg)
![Tree Limb Sheer](/img/attach-thumbs/attach-treelimb-sheer.jpg)
![Trenching Buckets](/img/attach-thumbs/attach-trenching-bucket.jpg)
ONE MAN. ONE MACHINE.
THE GRADALL DIFFERENCE
It starts with the unique telescoping Gradall boom that handles more jobs efficiently, thanks to its movements and superior strength. Gradall offers a unique range of excavator undercarriages that have reshaped the industry idea of equipment mobility, both on and off highways.
