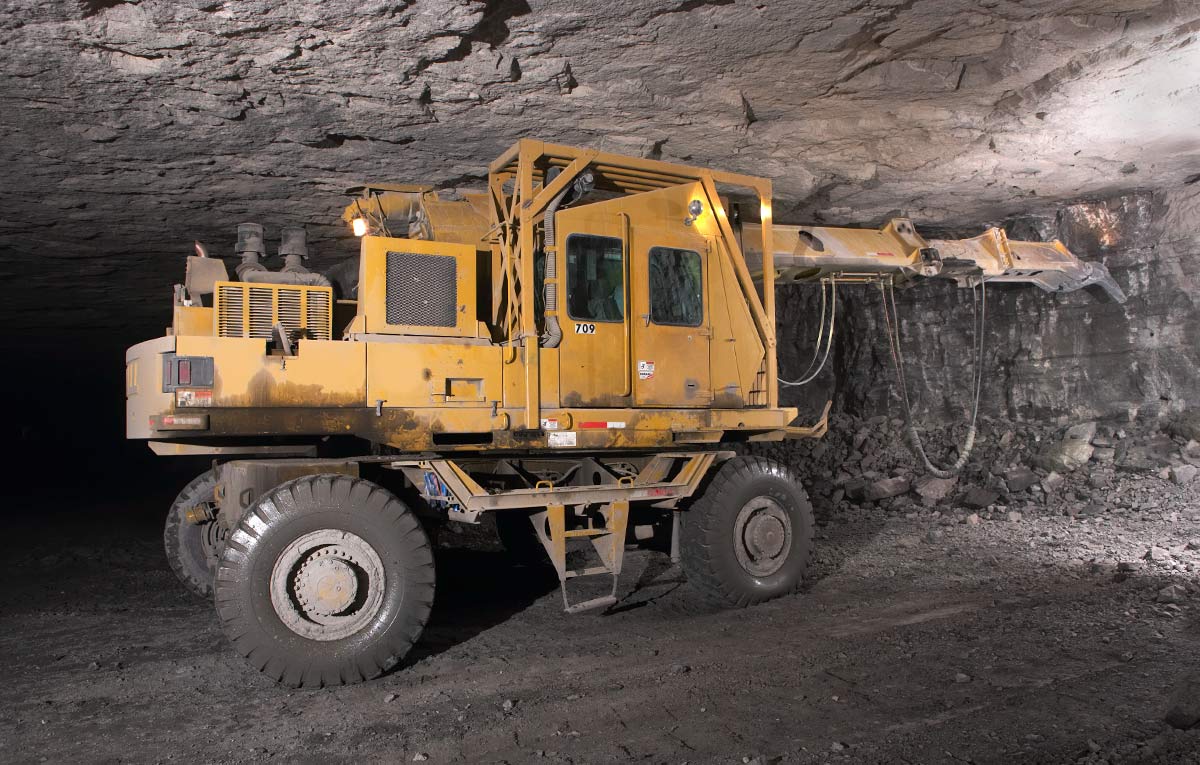

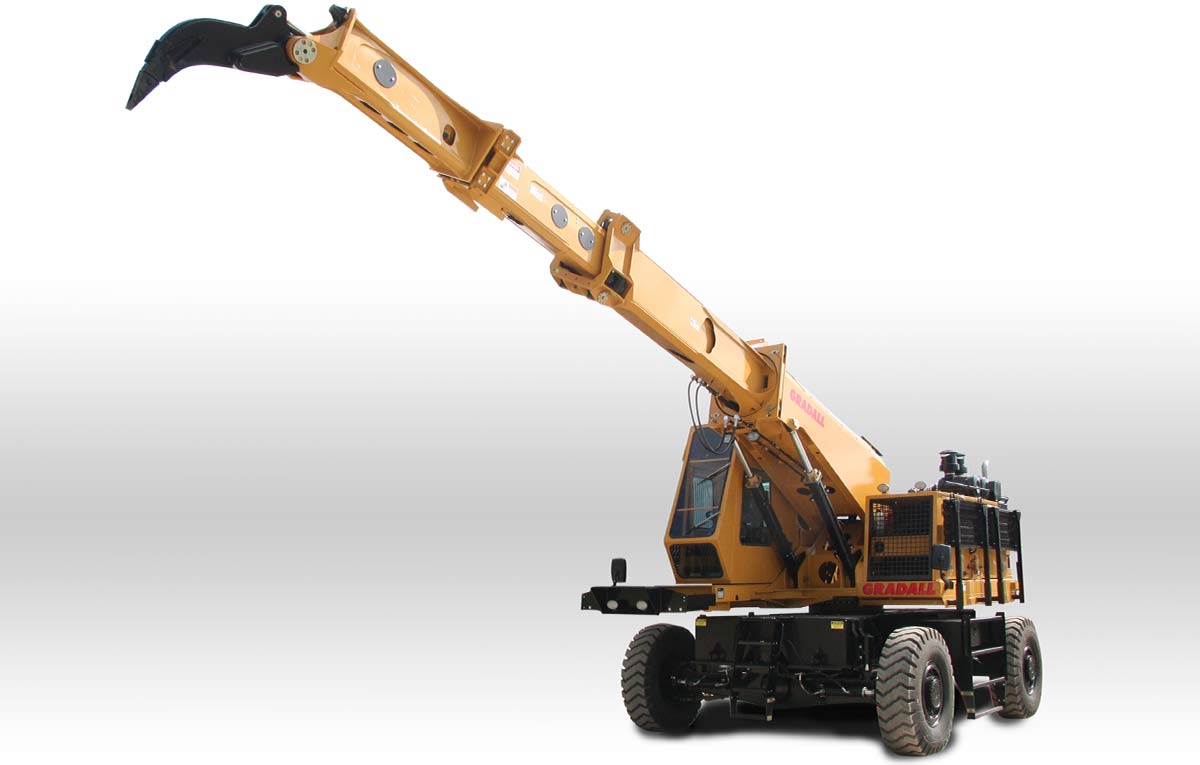

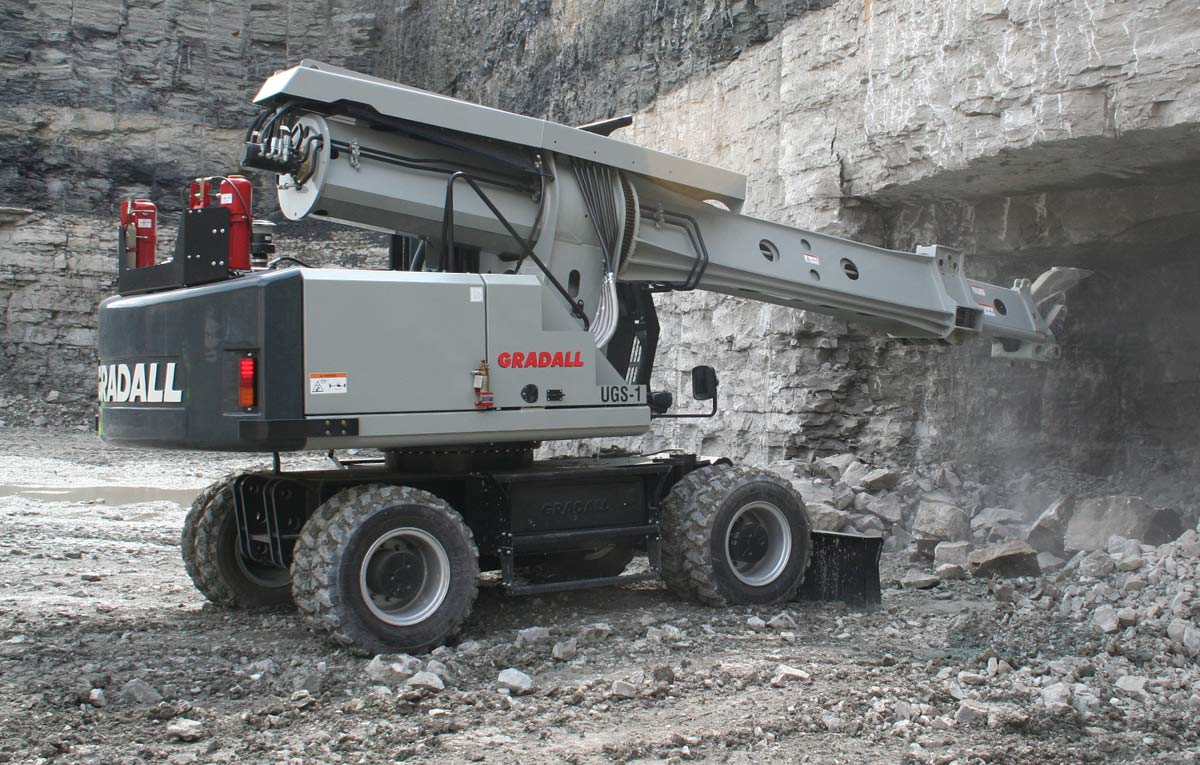

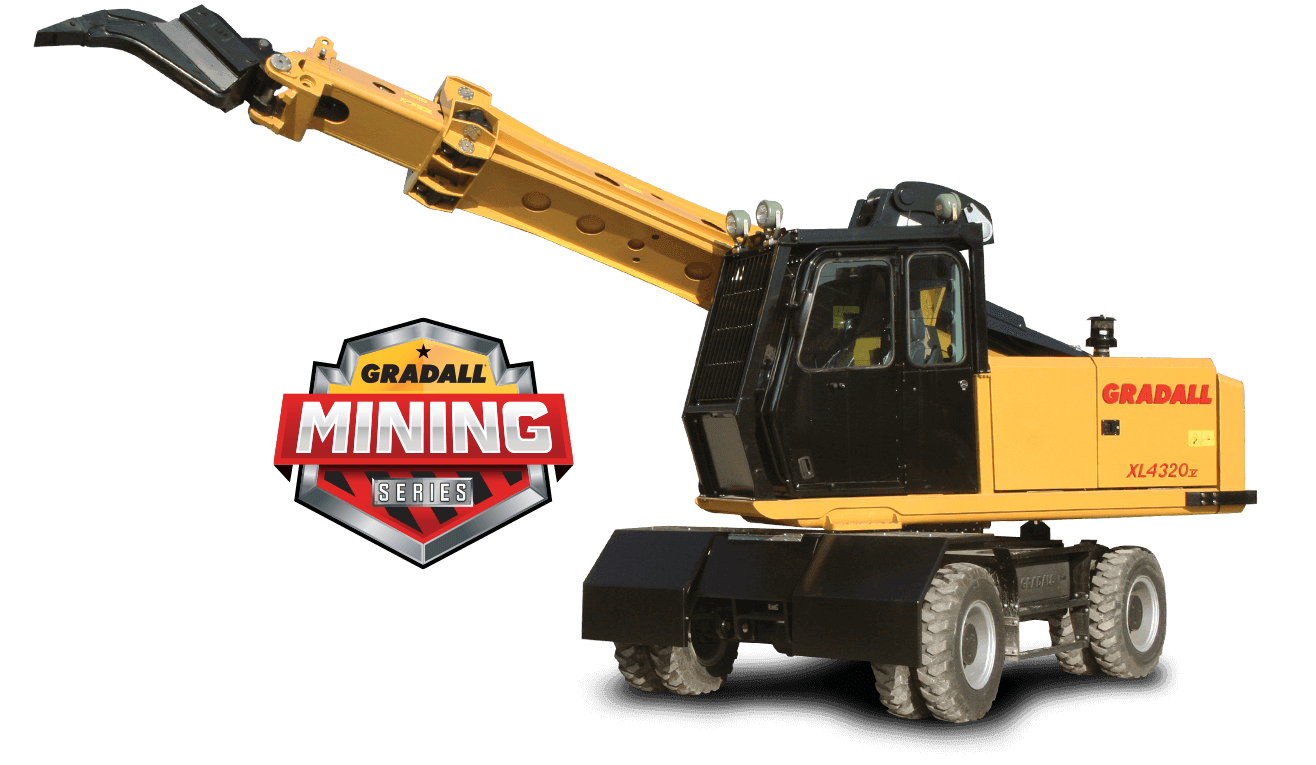

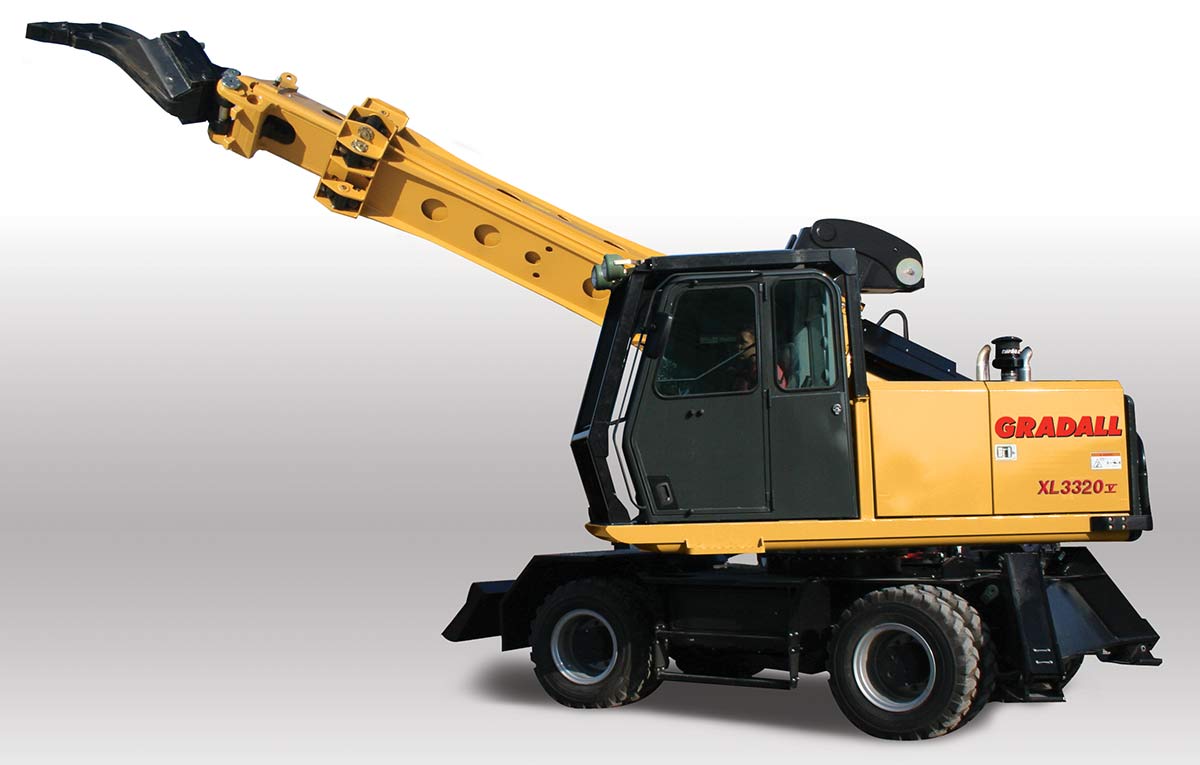

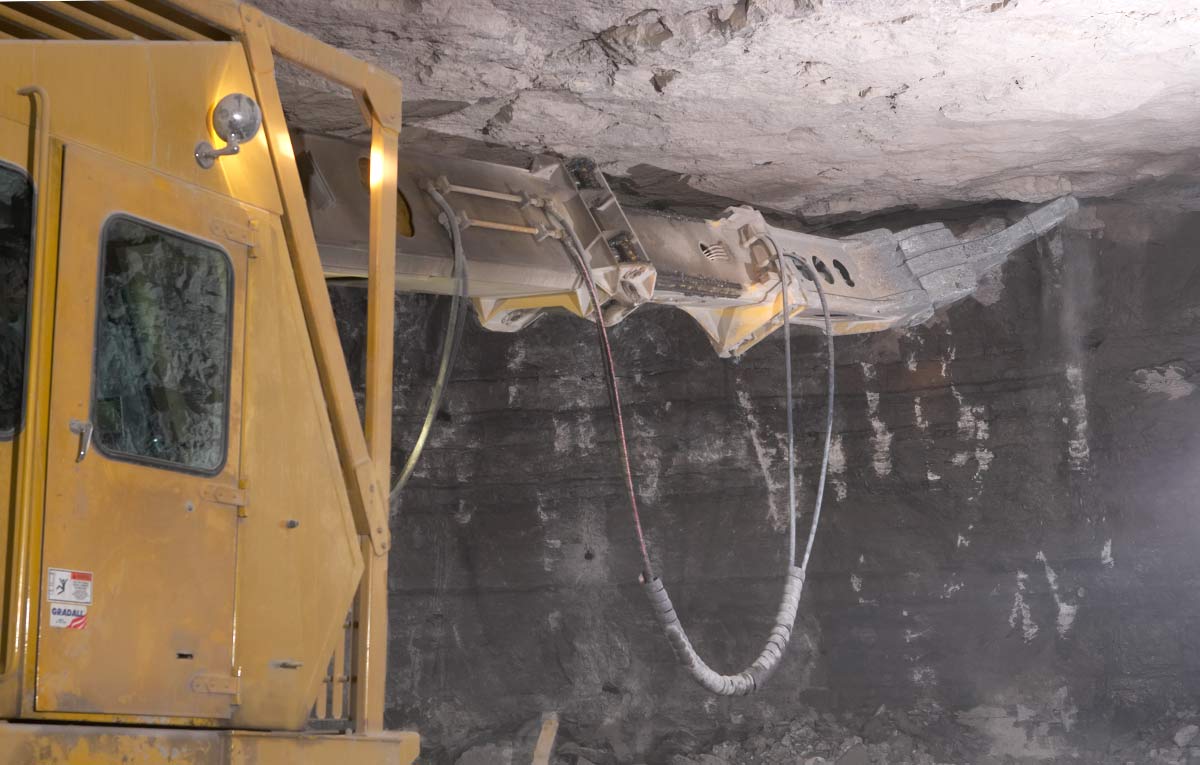

Increase scaling productivity with unique boom action
Handle the rigors of mine scaling with a rugged triangular Gradall boom, including full-boom tilt, double rollers and a host of other high performance, high durability features.
FEATURES

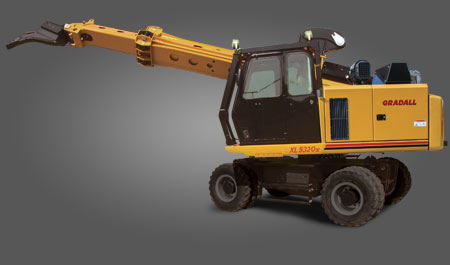

- CHASSIS DESIGN
- CHASSIS DESIGN
- BOOM
- OPERATOR CAB
- ADVANCED SYSTEMS
- EXCAVATOR
- Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
- Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
- Travel speeds up to 12 mph
- Variable displacement high torque piston motor powers two-speed power shift transmission
- Electronically operated travel alarm signals carrier movement
- Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
- Automatic spring-set/hydraulic release wet-disc parking brake
- Dynamic braking is provided by the hydraulic system
- Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
- Full boom telescopes and tilts 220° to address hard-to-reach prying locations and avoid overhead obstructions
- All hydraulic hoses are located safely inside the boom
- Double rollers handle rigors of scaling
- Consistent boom force through the entire dig cycle
- Rugged boom telescopes out to 48’ 9”
- Low profile operation for work beneath low ceilings
- Full-length boom visibility during the entire dig cycle
- Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
- All-weather cab has tinted safety glass, acoustical lining, filtered fresh air heater, defroster and A/C
- Front window has heat-resistant glass
- Tilting, telescoping steering column provides smooth, comfortable steering
- Hydraulic foot pedal controls braking functions
- Independent rocker switches control stabilizers, axle oscillation, park brake and hazard lights
- Adjustable seating module has joystick controls built into the armrests
- Internal tooth swing bearing provides smooth, stable movement
- Excellent visibility of the boom and surrounding area
- High performance, high reliability 24-volt electrical system
- Legendary Bosch Rexroth design and reliability
- All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
- Short tail swing won't obstruct traffic
- Stable, without the need for outriggers
- Extra tough telescoping boom design, with full power through the entire dig cycle
- Cycle speeds comparable or exceeding conventional excavators
- Electronic joysticks provide precise control over boom and attachment positioning

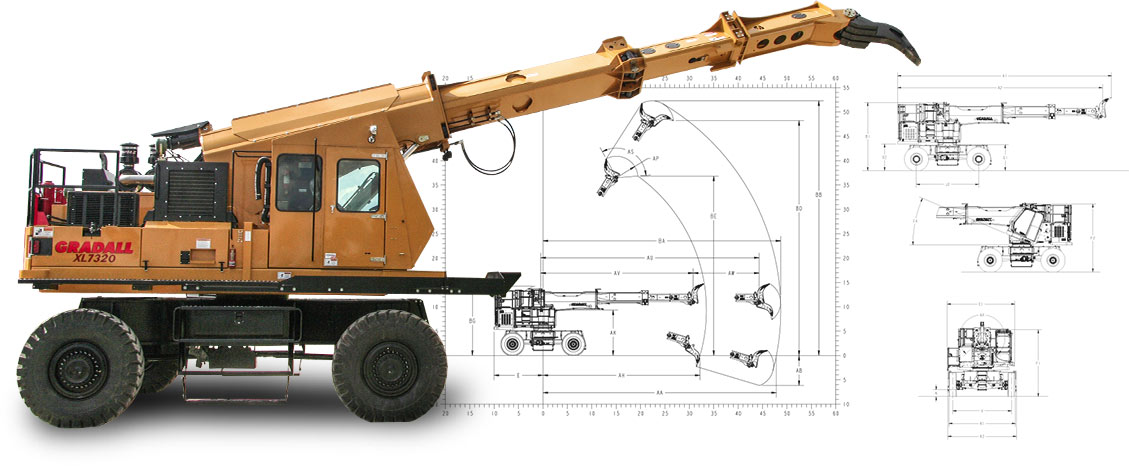

Wheeled
Crawler
DOWNLOAD COMPLETE SPECIFICATIONS (PDF)
ENGLISH:
XL 3320 V XL 4320 V XL 5320 V XL 7320 VMANDARIN:
XL 3320 V XL 4320 V XL 5320 V XL 7320 VOPERATING RANGE & PERFORMANCE | XL 3320 V | XL 4320 V | XL 5320 V | XL 7320 V |
---|---|---|---|---|
Engine Std. | Volvo TAD571 VE, Tier 4f | Volvo TAD571 VE, Tier 4f | Volvo TAD571 VE, Tier 4f | Volvo TAD571 VE, Tier 4f |
HP @ RPM | 172/2000 | 173/2200 | 173/2200 | 215/2200 |
Max. Digging Depth | 19' 2" (5.6) | 22' 1" (6.7) | 25' 5" (7.7) | 6' 2" (1.9) |
Max. Radius at Groundline | 28' 2" (8.6) | 31' 3" (9.5) | 34' 9" (10.6) | 47' 10" (14.6) |
Max. Loading Height | 15' 11" (4.9) | 17' 5" (5.3) | 19' 2" (5.8) | 48' 2" (14.7) |
Max. Scaling Height | 23' 7" (7.2) | 25' 1" (7.6) | 26' 9" (8.4) | 52' 3" (15.9) |
Boom Telescope | 11' 0" (3.4) | 12' 6" (3.8) | 14' 0" (4.3) | 13' 6" (4.1) |
Boom Tilt | 220° | 220° | 220° | 270° |
Attachment Pivot Angle | 165° | 165° | 165° | 114° |
Rated Boom Force | 22,075 lb (98.2 kN) | 22,075 lb (98.2 kN) | 24,941 lb (111 kN) | |
Rated Ripper Tooth Force | 25,405 lb (113 kN) | 25,405 lb (113 kN) | 25,405 lb (113 kN) |
WEIGHTS & DIMENSIONS | XL 3320 V | XL 4320 V | XL 5320 V | XL 7320 V |
---|---|---|---|---|
Operating Weight | 42,294 lb (19,184 kg) | 46,580 lb (21,128 kg) | 55,926 lb (25,368 kg) | 77,500 lb (35,153 kg) |
Swing Clearance | 7' 6" (2.3) | 8' 0" (2.4) | 8' 6" (2.6) | 10' 0" (3.0) |
Transport Length w/ Attachment | 24' 0" (7.3) | 26' 0" (7.9) | 28' 4" (8.6) |
UNDERCARRIAGE | XL 3320 V | XL 4320 V | XL 5320 V | XL 7320 V |
---|---|---|---|---|
Drive | 4 x 4 | 4 x 4 | 4 x 4 | 4 x 4 |
Wheelbase | 8' 9" (2.7) | 8' 9" (2.7) | 8' 9" (2.7) | 12' 6" (3.8) |
Travel Speed - MPH | 12 (19.3 kph) | 12 (19.3 kph) | 12 (19.3 kph) | 11 (17.7 kph) |
Ground Clearance | 3" (78 mm) | 3" (78 mm) | 3" (78 mm) |
DOWNLOAD COMPLETE SPECIFICATIONS (PDF)
ENGLISH:
XL 3220 V XL 4220 V XL 5220 VMANDARIN:
XL 3220 V XL 4220 V XL 5220 VOPERATING RANGE & PERFORMANCE | XL 3220 V | XL 4220 V | XL 5220 V |
---|---|---|---|
Engine Std. | Volvo TAD571 VE, Tier 4f | Volvo TAD571 VE, Tier 4f | Volvo TAD571 VE, Tier 4f |
HP @ RPM | 172/2000 | 173/2200 | 173/2200 |
Max. Digging Depth | 19' 11" (6.1) | 22' 10" (7.0) | 26' 2" (8.0) |
Max. Radius at Groundline | 28' 4" (8.6) | 31' 5" (9.6) | 34' 1" (10.6) |
Max. Scaling Height | 22' 10" (7.0) | 24' 10" (7.4) | 26' 0" (7.9) |
Boom Telescope | 11' 0" (3.4) | 12' 6" (3.8) | 14' 0" (4.3) |
Boom Tilt | 220° | 220° | 220° |
Attachment Pivot Angle | 165° | 165° | 165° |
Rated Boom Force | 22,075 lb (98.2 kN) | 22,075 lb (98.2 kN) | 24,941 lb (111 kN) |
Rated Ripper Tooth Force | 25,405 lb (113 kN) | 25,405 lb (113 kN) | 25,405 lb (113 kN) |
WEIGHTS & DIMENSIONS | XL 3220 V | XL 4220 V | XL 5220 V |
---|---|---|---|
Operating Weight | 44,327 lb (20,106 kg) | 48,862 lb (22,163 kg) | 59,162 lb (26,835 kg) |
Swing Clearance | 7' 6" (2.3) | 8' 0" (2.4) | 8' 6" (2.6) |
Transport Length w/ Attachment | 23' 11" (7.3) | 25' 11" (7.9) | 28' 4" (8.6) |
UNDERCARRIAGE | XL 3220 V | XL 4220 V | XL 5220 V |
---|---|---|---|
Travel Speed - MPH | 3.4 (5.5 kph) | 3.4 (5.5 kph) | 3.4 (5.5 kph) |
Track Length | 11' 9" (3.6) | 13' 8" (4.2) | 13' 8" (4.2) |
Pad Width | 23' 6" (600 mm) | 31' 5" (800 mm) | 31' 5" (800 mm) |
Ground Bearing Pressure | 10.1 psi (69.6kPa) | 5.8 psi (40.2kPa) | 7.1 psi (48.9kPa) |
Ground Clearance | 18" (454 mm) | 18" (454 mm) | 18" (454 mm) |
DOWNLOAD LITERATURE (PDF)
SERIES V BROCHURE![Brochure](/img/products/models/highway/literature-highway.jpg)
![Chassis Cab](/img/products/models/mining/feature-chassis.jpg)
![Gradall at Work Logo](/img/gradall-at-work-logo.png)
“I've been in this business a long time, and I can confidently say that Gradall makes the very best machine for scaling work.”
David Conrad
Production Manager
East Fairfield Coal Co. Limestone Division mine
![](/img/products/models/mining/mining-quote-bg.jpg)
![Gradall At Work Background](/img/atwork-photo-bg.gif)
![](/img/job-stories/gradall-at-work-73.jpg)
LATEST JOB STORY

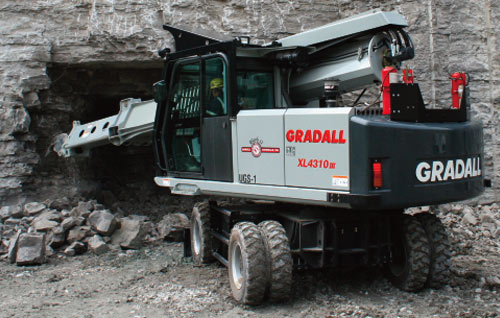

ZANESVILLE, OHIO
