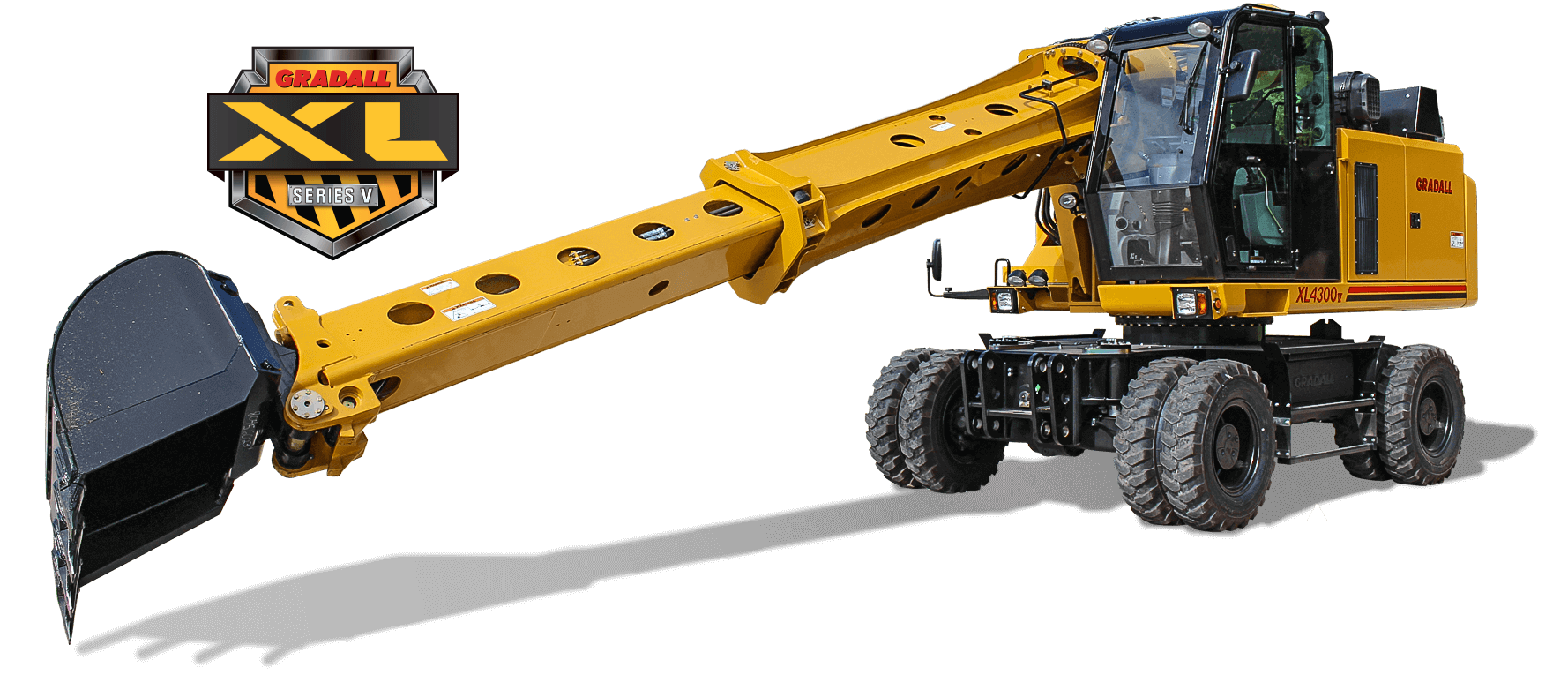

![Wheeled Thumbnail Image 1](/img/products/models/wheeled/thumbnail-slider-hero.png)

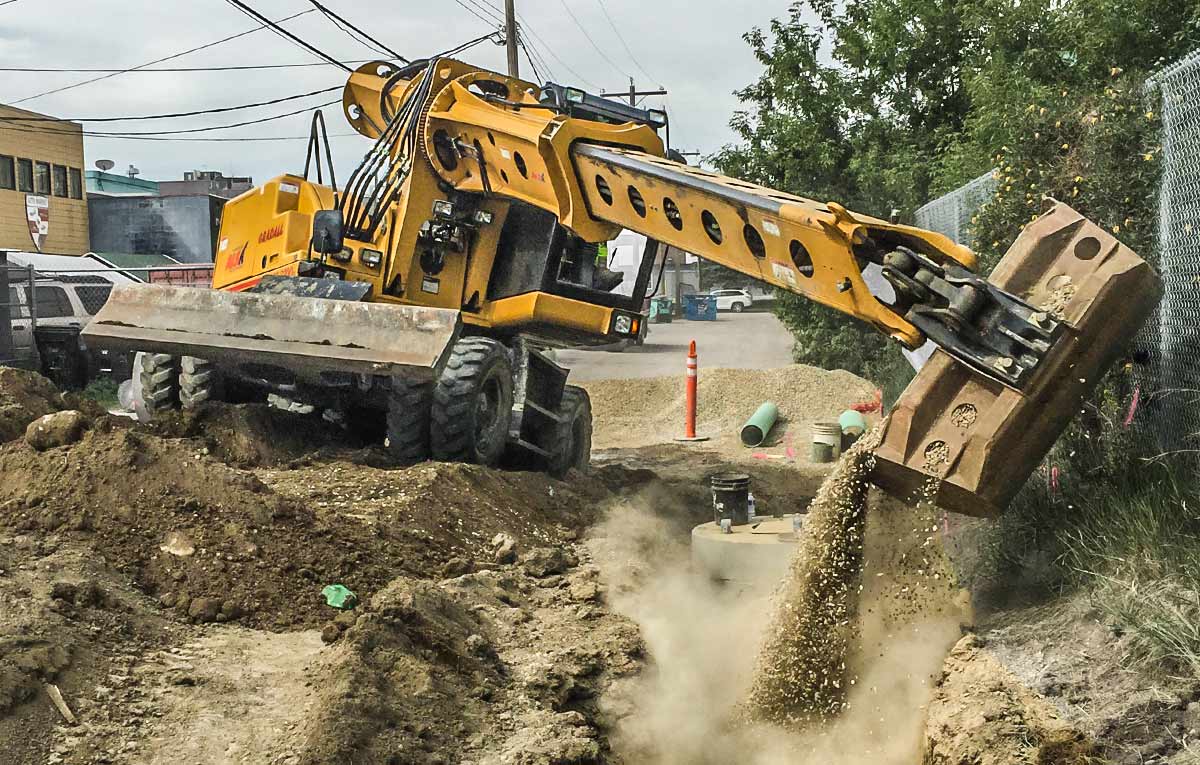

![Wheeled Thumbnail Image 2](/img/products/models/wheeled/thumbnail-slider-2.jpg)

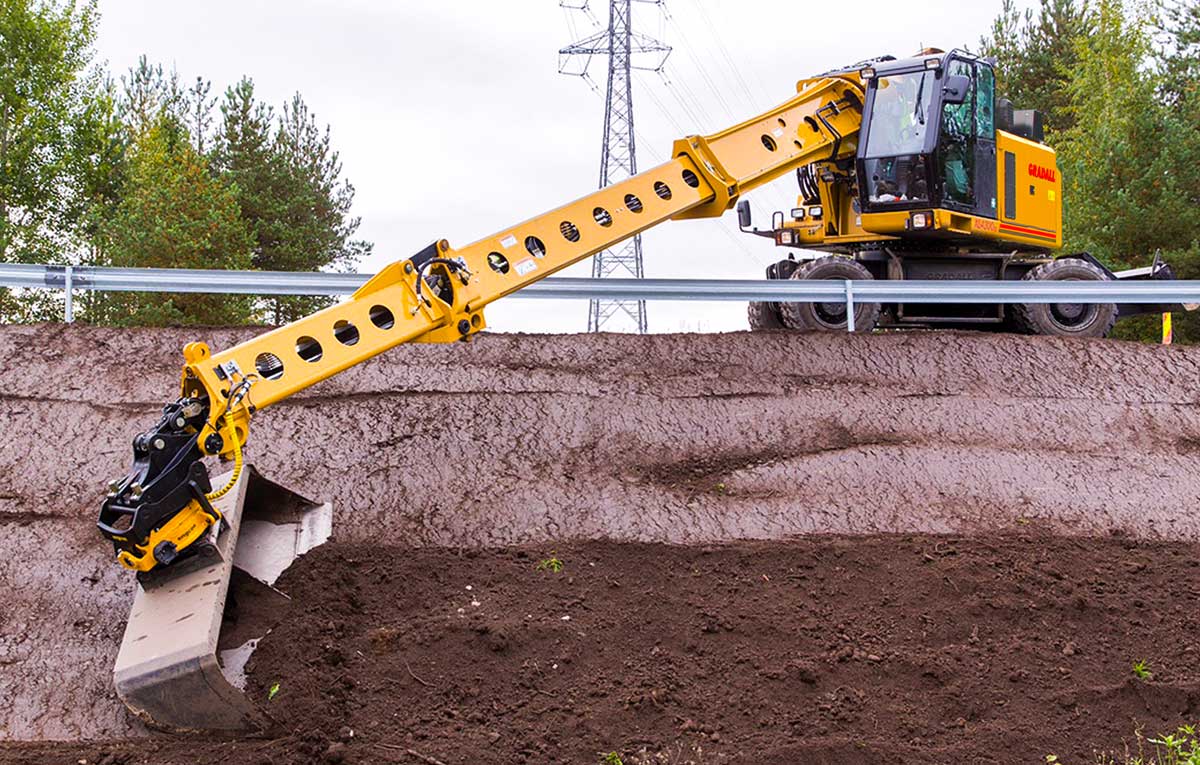

![Wheeled Thumbnail Image 3](/img/products/models/wheeled/thumbnail-slider-3.jpg)

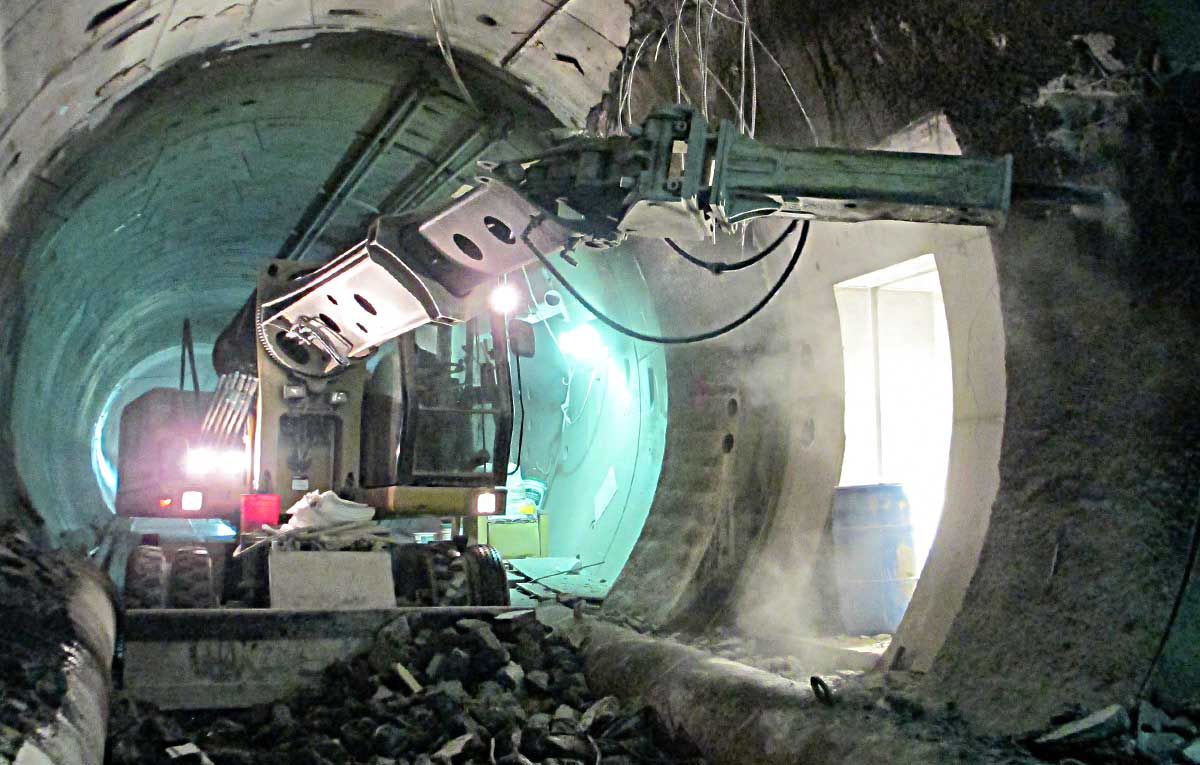

![Wheeled Thumbnail Image 4](/img/products/models/wheeled/thumbnail-slider-4.jpg)

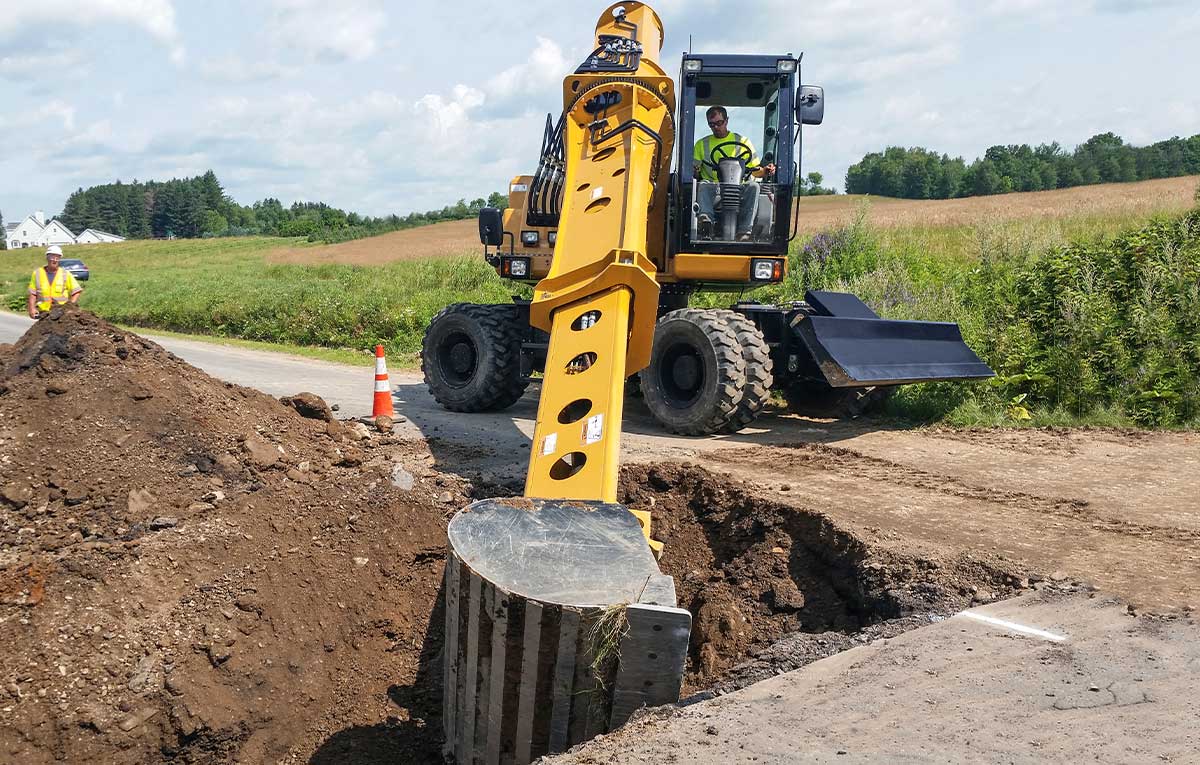

![Wheeled Thumbnail Image 5](/img/products/models/wheeled/thumbnail-slider-5.jpg)

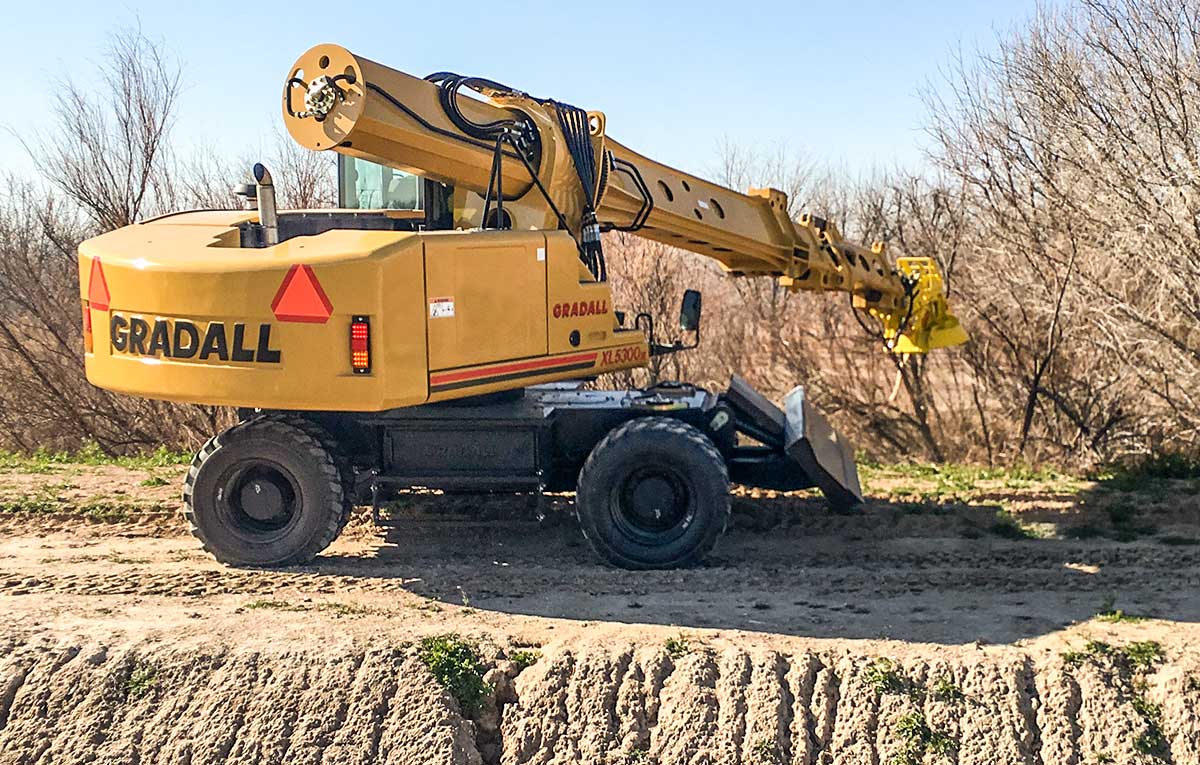

![Wheeled Thumbnail Image 6](/img/products/models/wheeled/thumbnail-slider-6.jpg)

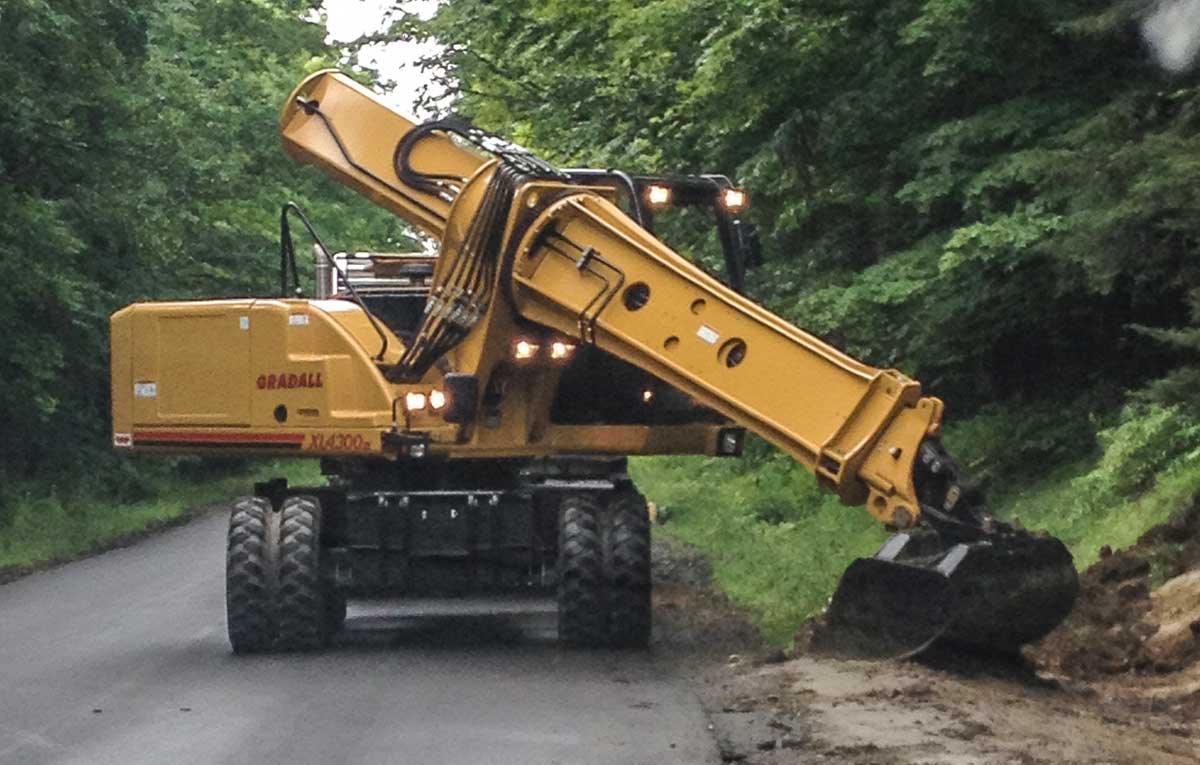

![Wheeled Thumbnail Image 7](/img/products/models/wheeled/thumbnail-slider-7.jpg)

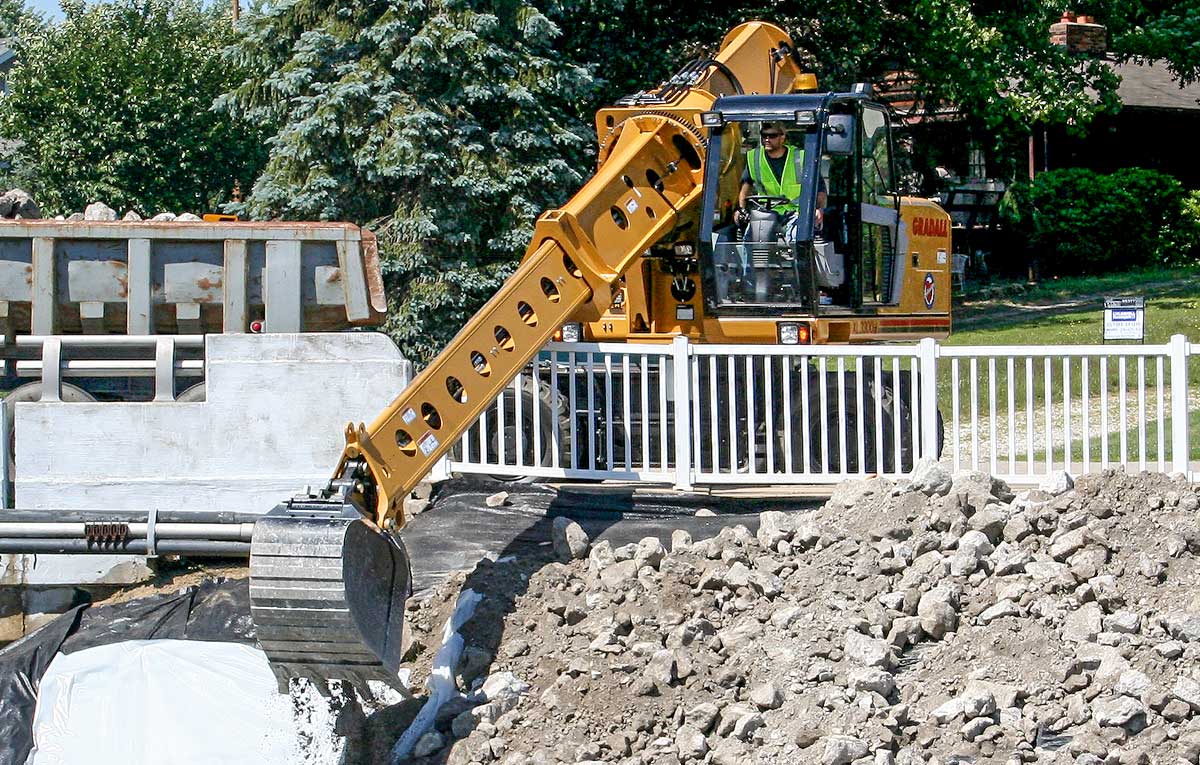

![Wheeled Thumbnail Image 8](/img/products/models/wheeled/thumbnail-slider-8.jpg)
![Wheeled Thumbnail Image 1](/img/products/models/wheeled/thumbnail-slider-hero.png)
![Wheeled Thumbnail Image 2](/img/products/models/wheeled/thumbnail-slider-2.jpg)
![Wheeled Thumbnail Image 3](/img/products/models/wheeled/thumbnail-slider-3.jpg)
![Wheeled Thumbnail Image 4](/img/products/models/wheeled/thumbnail-slider-4.jpg)
![Wheeled Thumbnail Image 5](/img/products/models/wheeled/thumbnail-slider-5.jpg)
![Wheeled Thumbnail Image 6](/img/products/models/wheeled/thumbnail-slider-6.jpg)
![Wheeled Thumbnail Image 7](/img/products/models/wheeled/thumbnail-slider-7.jpg)
![Wheeled Thumbnail Image 8](/img/products/models/wheeled/thumbnail-slider-8.jpg)
Stable without outriggers, pick and carry big loads
Sure-footed like a conventional crawler, but mobile on pavement as well as dirt, Gradall continues its tradition of designing and building rubber tire excavators with superior productivity as well as versatility.
Gradall is a Sourcewell contract supplier
Members of the Sourcewell cooperative purchasing agency can purchase Gradall machines without going through an extensive bidding process.
LEARN MORE![Sourcewell Awarded Contract](../img/sourcewell/sourcewell-widget.png)
FEATURES
- CHASSIS DESIGN
- CHASSIS DESIGN
- BOOM
- OPERATOR CAB
- ADVANCED SYSTEMS
- EXCAVATOR
OPERATING RANGE & PERFORMANCE | XL 3300 V | XL 4300 V | XL 5300 V |
---|---|---|---|
Engine Standard | Volvo TAD571 VE Tier 4f 5.1L | Volvo TAD571 VE Tier 4f 5.1L | Volvo TAD571 VE Tier 4f 5.1L |
HP @ RPM | 172/2,000 | 173/2,200 | 173/2,200 |
Max Digging Depth | 18' 5" (5.6 m) | 21' 3" (6.5 m) | 24' 7" (7.5 m) |
Max. Radius at Groundline | 27' 3" (8.3 m) | 30' 4" (9.2 m) | 33' 10" (10.3 m) |
Max. Loading Height | 15' 6" (4.7 m) | 17' 0" (5.2 m) | 18' 8" (5.7 m) |
Max. Work Hgt., (Boom below grade) | 14' 9" (4.5 m) | 14' 9" (4.5 m) | 14' 9" (4.5 m) |
Boom Telescope | 11' 0" (3.4 m) | 12' 6" (3.8 m) | 14' 0" (4.3 m) |
Boom Tilt | 220° | 220° | 220° |
Bucket Pivot Angle | 165° | 165° | 165° |
Rated Boom Force | 22,075 lb (98.2 kN) | 22,075 lb (98.2 kN) | 24,941 lb (111 kN) |
Rated Bucket Breakout Force | 19,300 lb (86 kN) | 25,405 lb (113 kN) | 25,405 lb (113 kN) |
Max. Lift Capacity | 8,150 lb (3,695 kg) | 12,540 lb (5,690 kg) | 13,764 lb (6,243 kg) |
WEIGHTS & DIMENSIONS | XL 3300 V | XL 4300 V | XL 5300 V |
---|---|---|---|
Operating Weight | 39,294 lb (17,823 kg) | 43,580 lb (19,768 kg) | 51,216 lb (23,231 kg) |
Swing Clearance | 7' 6" (2.3 m) | 8' 0" (2.4 m) | 8' 6" (2.6 m) |
Transport Length w/ Bucket | 24' 6" (7.5 m) | 26' 6" (8.1 m) | 30' 5" (9.3 m) |
Transport Height w/ Bucket | 12' 10" (3.9 m) | 12' 10" (3.9 m) | 12' 11" (3.9 m) |
Transport Width w/ Bucket | 8' 6" (2.6 m) | 9' 1" (2.8 m) | 9' 1" (2.8 m) |
UNDERCARRIAGE | XL 3300 V | XL 4300 V | XL 5300 V |
---|---|---|---|
Drive | 4 x 4 | 4 x 4 | 4 x 4 |
Wheelbase | 8' 9" (2.7 m) | 8' 9" (2.7 m) | 8' 9" (2.7 m) |
Travel Speed | 20 mph (32.2 kph) | 17.5 mph (28.2 kph) | 15.0 mph (24.1 kph) |
Ground Clearance | 11" (275 mm) | 11" (275 mm) | 11" (275 mm) |
ATTACHMENTS | XL 3300 V | XL 4300 V | XL 5300 V |
---|---|---|---|
Trenching Buckets | ✓ | ✓ | ✓ |
Excavating Buckets | ✓ | ✓ | ✓ |
Ditch Cleaning Buckets | ✓ | ✓ | ✓ |
Dredging Buckets | ✓ | ✓ | ✓ |
Pavement Removal Buckets | ✓ | ✓ | ✓ |
Grading Blades | ✓ | ✓ | ✓ |
Telestick | ✓ | ✓ | |
Boom Extensions | ✓ | ✓ | ✓ |
Hydraulic Hammers | ✓ | ✓ | ✓ |
Grapples | ✓ | ✓ | ✓ |
Flail Mowers | ✓ | ✓ | ✓ |
Rotary Mowers | ✓ | ✓ | ✓ |
DOWNLOAD LITERATURE (PDF)
SERIES V BROCHURE![Download Gradall Wheeled Excavator Brochure](/img/products/models/wheeled/literature-wheeled.jpg)
- Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
- Over-the-road highway speed travel at 20 mph with full time four-wheel-drive
- Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6.
- Oscillation lock cylinders and strong box plate frame construction provide stable work platform
- Work at front, rear or side of chassis without the need for outriggers
- Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
- Optional blade and outriggers available
- Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
- No loss of power to attachment tilting capability
- Consistent boom force through the entire dig cycle
- Dig down at 75° angle
- Rugged boom telescopes out to 33’ 10”
- Low profile for work under bridges, trees and in tunnels
- Full-length boom visibility during the entire dig cycle
- Fast cycle times for ditching, loading and spreading
- Quick attach bolt system handles full range of attachments
- Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
- Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
- Internal tooth swing bearing provides smooth, stable movement
- With foot pedals, reposition carrier at speeds up to 20 mph
- Excellent visibility of the boom through the entire dig cycle
- Standard air conditioning
- Optional rollover protection
- Removable, stowable front window brings fresh air into the cab
- High performance, high reliability 24-volt electrical system
- Legendary Bosch Rexroth design and reliability
- All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages
- Short tail swing won't obstruct traffic
- Stable digging platform for work in any direction, without need to stop and lower outriggers
- Triangular telescoping boom design, with full power through the entire dig cycle
- Cycle speeds comparable or exceeding conventional excavators
- Electronic joysticks provide precise control over boom and attachment positioning

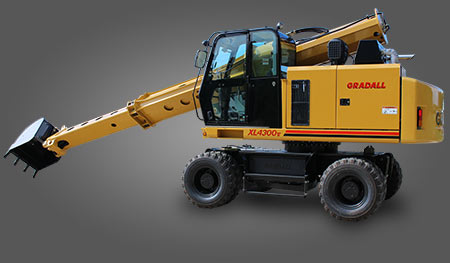

![Chassi Cab](/img/products/models/wheeled/feature-chassis.jpg)
![Gradall at Work Logo](/img/gradall-at-work-logo.png)
GRADALL VERSATILITY AT WORK
- Asphalt and concrete repair
- Mass excavation
- Demolition
- Barrier placement
- Ditching
- Sloping
- Finished grading
- Spreading rip-rap
- Curb, gutter and sidewalk replacement
- Tree and vegetation trimming
- Storm and canal cleanout
- Material movement
- Culvert replacement
- Mowing
- Guardrail cleanout
- Debris cleanup
- Bridge replacement
- Landscaping
- Dredging
![Gradall At Work Background](/img/atwork-photo-bg.gif)

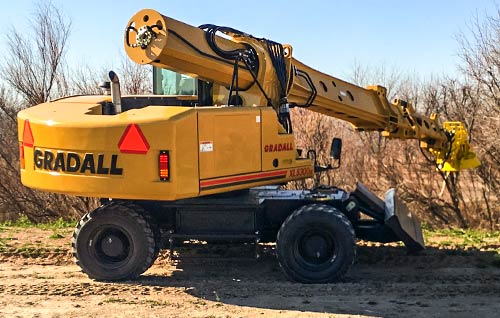

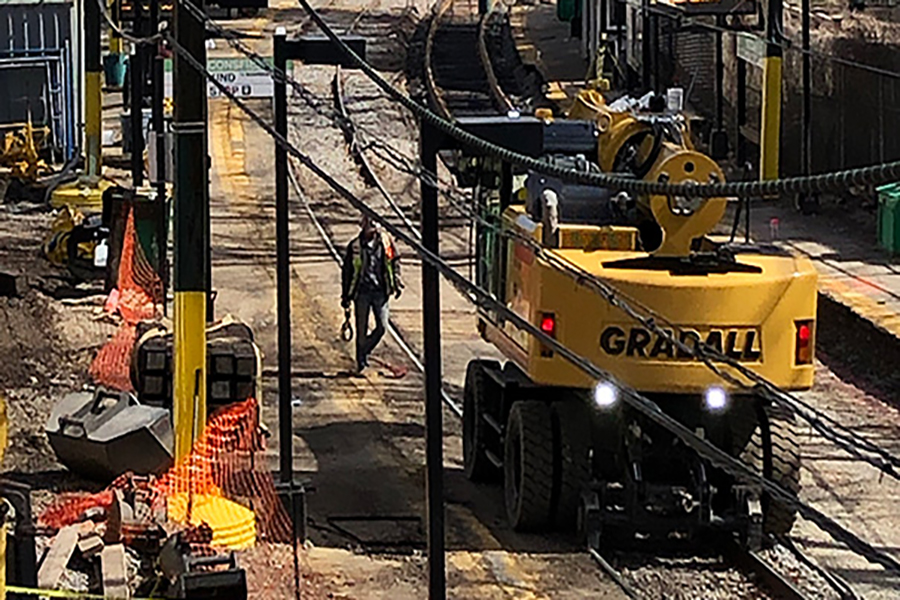

![](/img/job-stories/gradall-at-work-123.jpg)
